Nut Harvester
Base price: NZ$ 11875.00
(all prices excl. GST)
Availability:
ex. factory
Delivery:
Fits to the front of larger ride-on mowers, ATVs, quadbikes or small tractors. Versatile for collecting a range of nuts, including chestnuts, hazelnuts and walnuts. The operating principle is very important — the harvester must be out in front so that the nuts are collected before they can be run over.

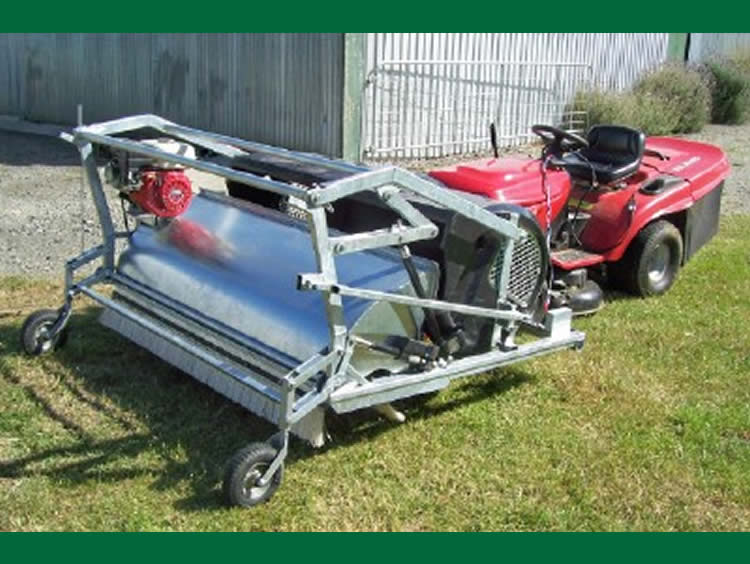

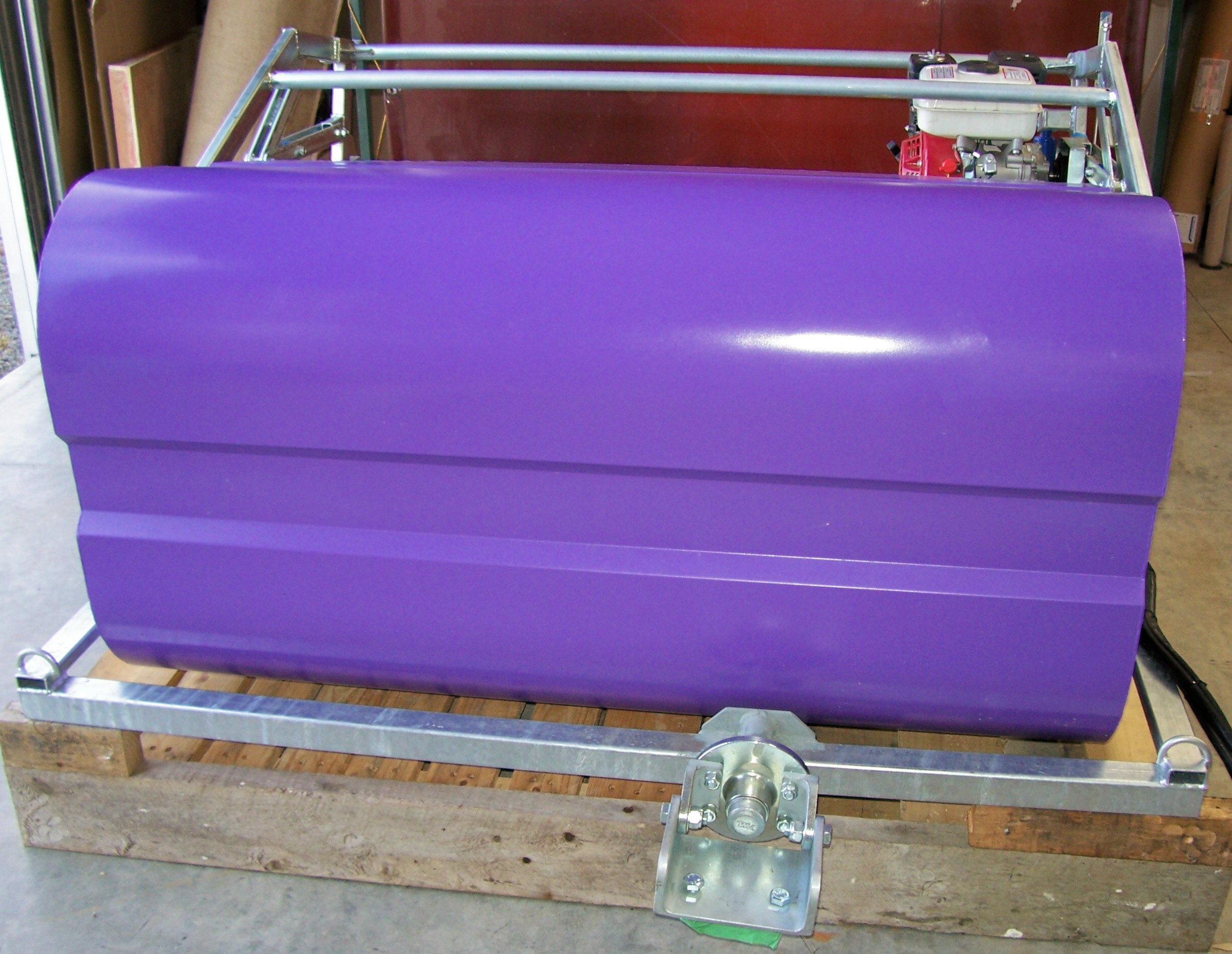

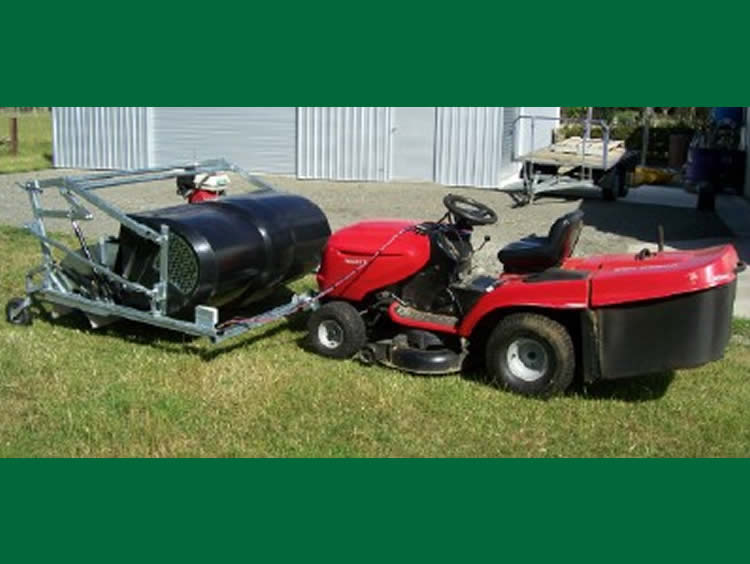

Latest model has hydraulic power for raise/lower or bin tipping — see main picture above. The nut harvester can be supplied with its own power pack or for use with a tractor hydraulic supply (only small supply required). With the increased bin capacity of the latest model, the smaller mower shown in the pictures is no longer large enough — bigger prime movers are required.
If you have an queries about the ability of your equipment to handle the Nut Harvester, please contact us for advice.

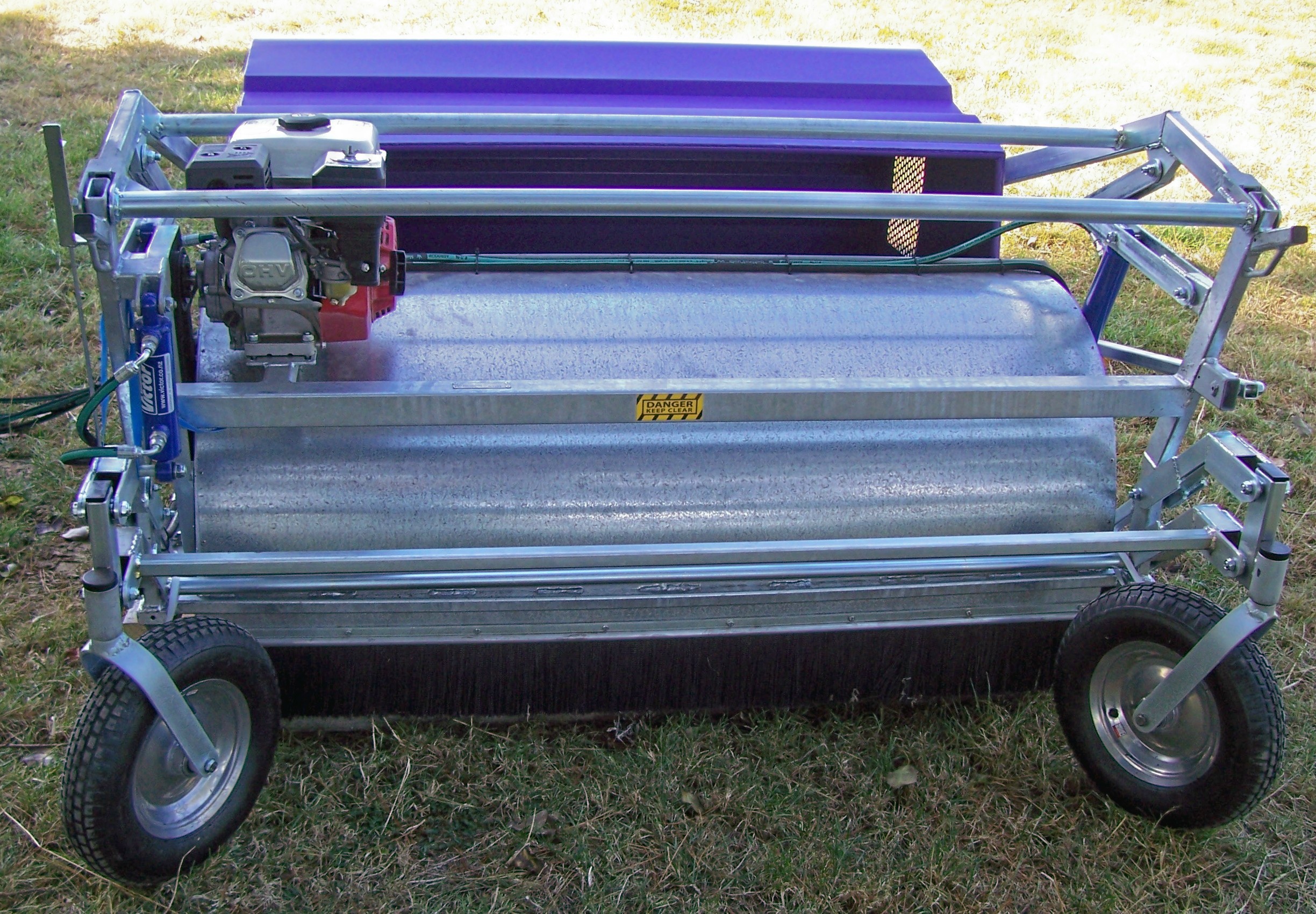

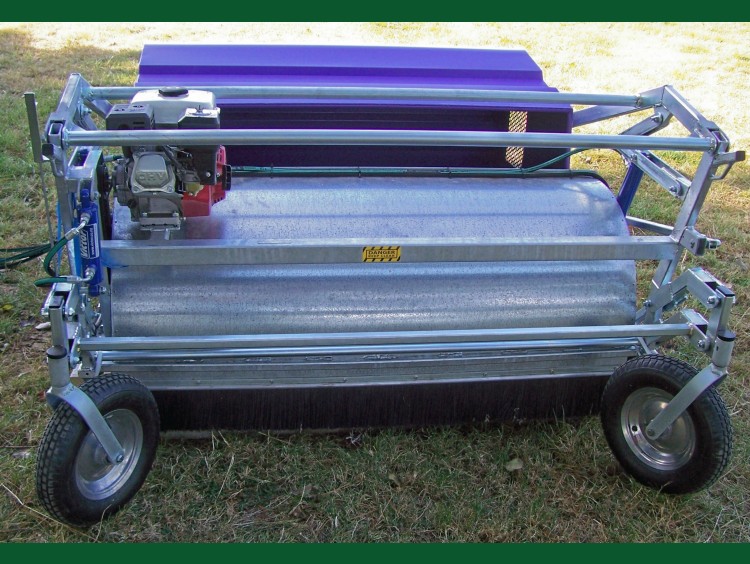

Broom sweeps up both large and small nuts — no adjustments required.

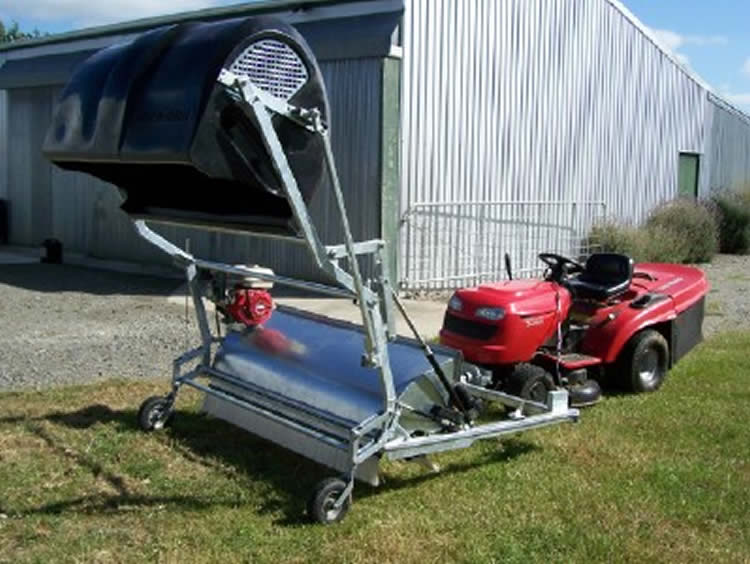

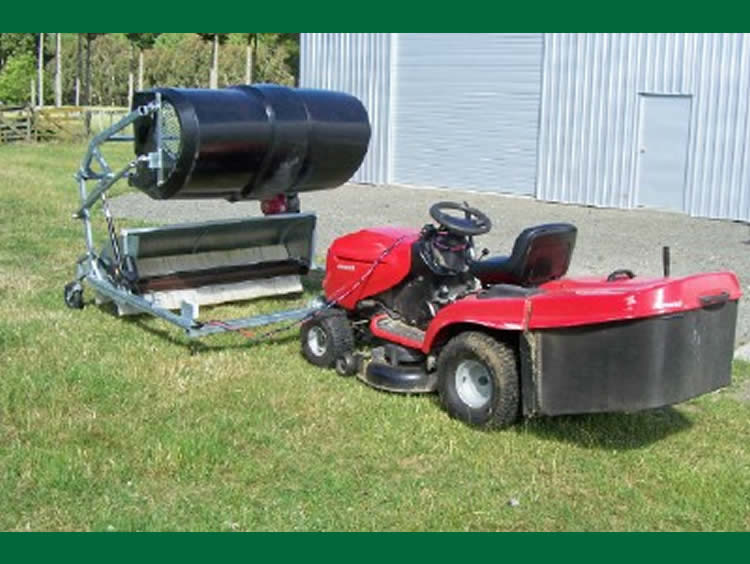

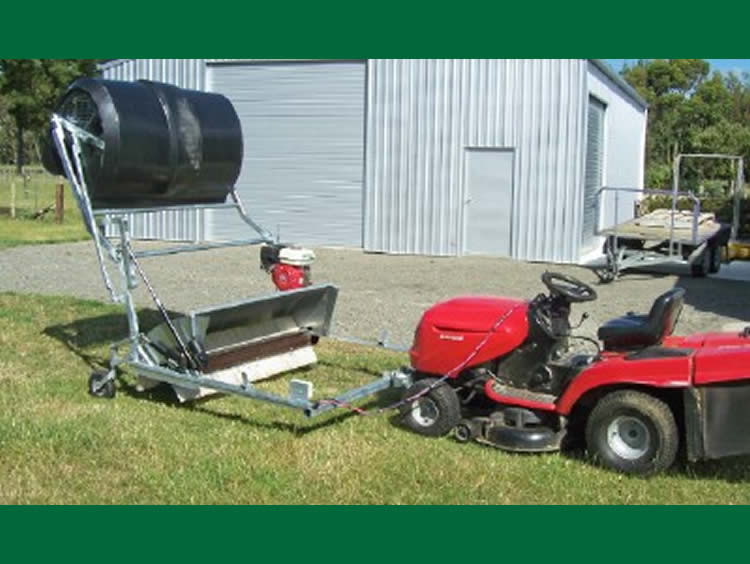

Large collection bin can lift high and unload into potato boxes or similar.
Self-contained, with separate engine powering the broom and hydraulic system.

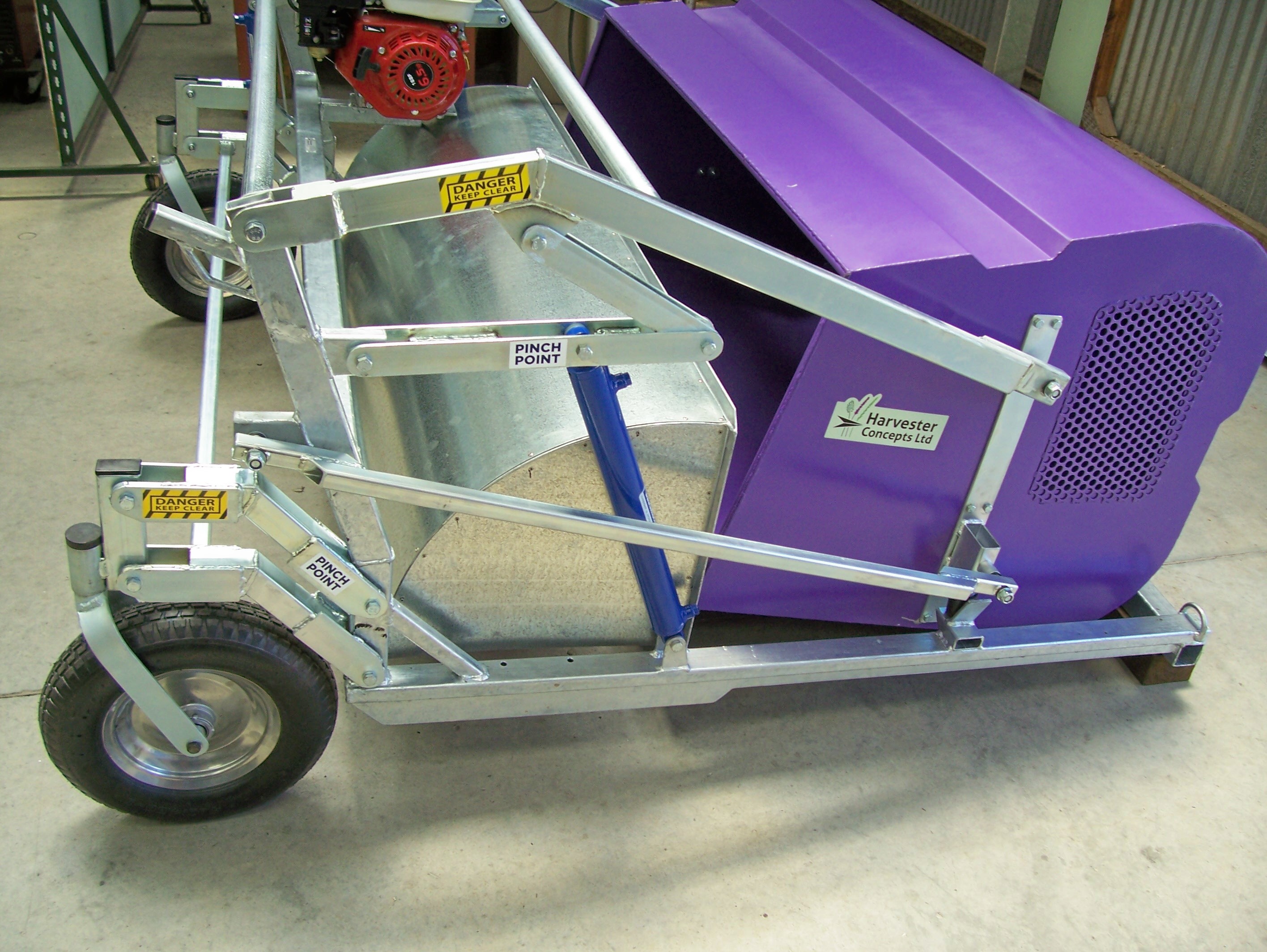

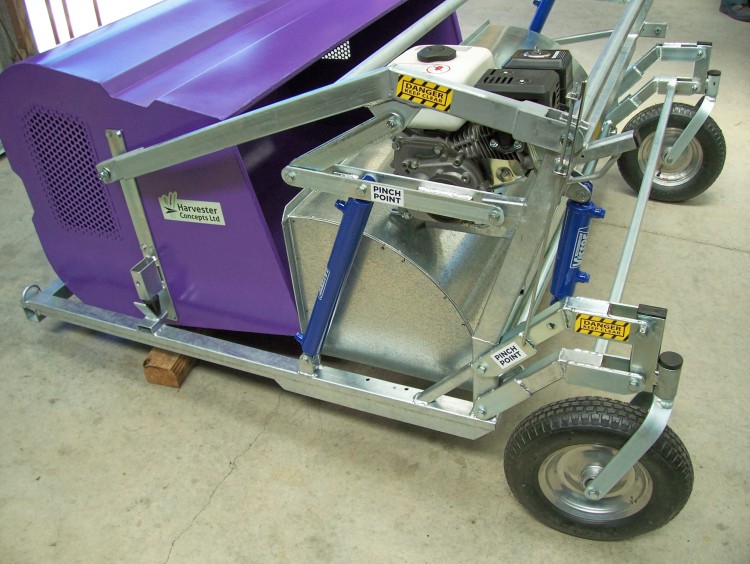

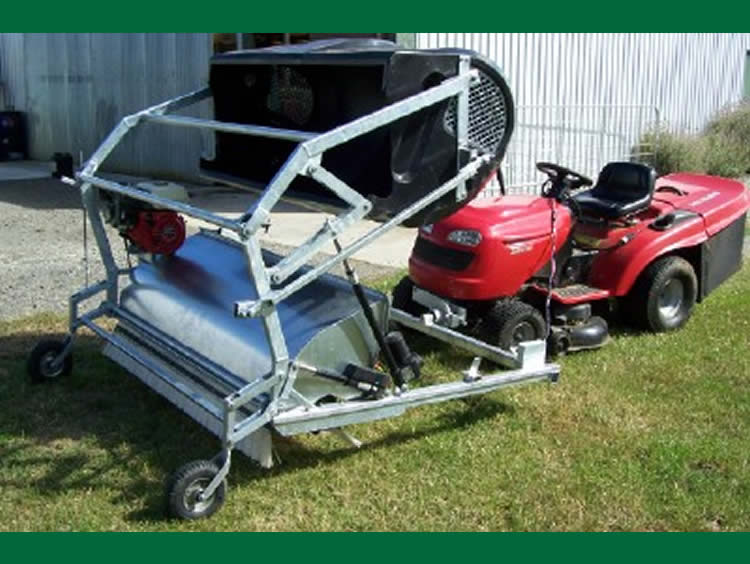

Hydraulic operation ensures quick, effortless broom height adjustment and unloading of the bin (12vDC power required from vehicle).
If mounted on a mower, then collecting and mowing can be done at the same time.
-
Broom width (collecting width): 1470 mm
-

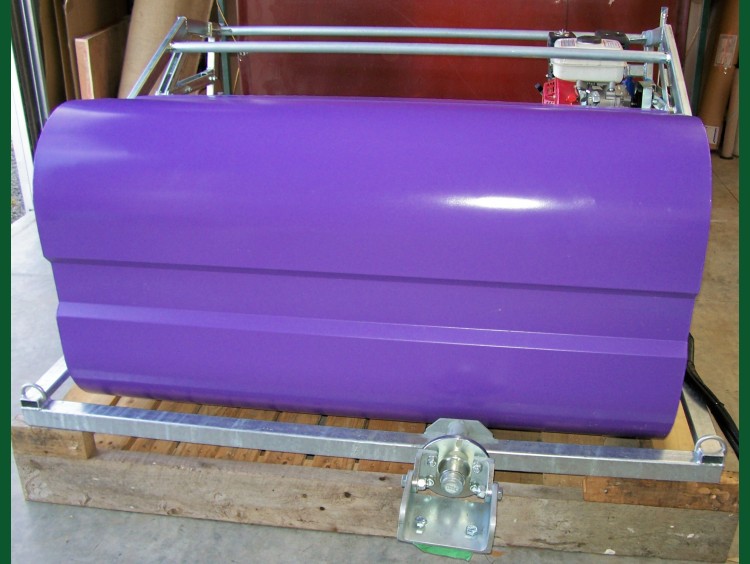

Bin capacity: up to 588 litres
-
Unload height: above 1000 mm
-
Engine: 6.5HP 4 stroke running at low speed
-
Dimensions:
Width(mm) Length(mm) Height(mm) cu.m(approx.) kg(approx.) Ready to use 1700 1770 - - - For freighting (on pallet) - - - 200kg
Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.
| With Valving | $13240.00 |
| With Power Pack | $14820.00 |
Watch videos:
