(all prices excl. GST)
ex. factory
NZ delivery typically within three weeks.

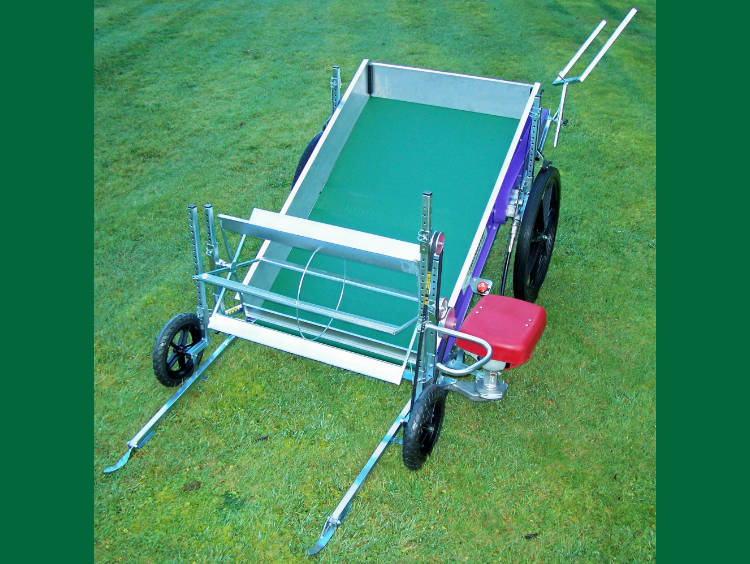

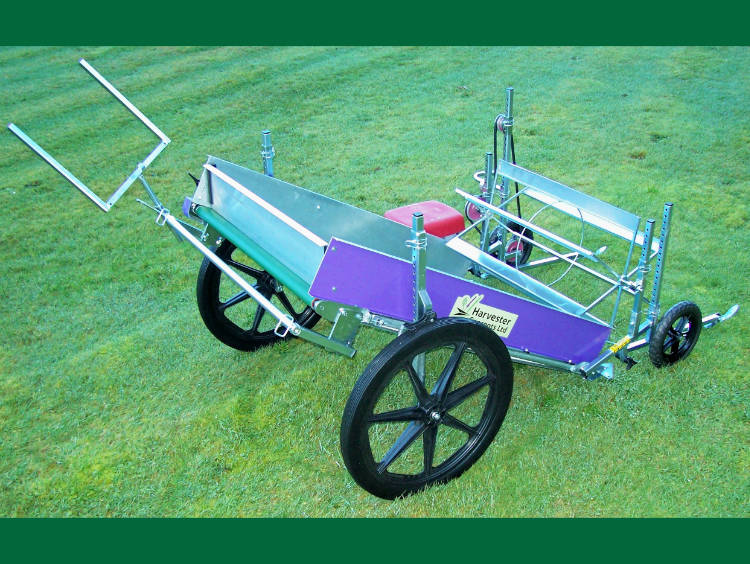

The HT-Cress harvester has been specifically developed for the harvesting of water cress. It can even be used while overhead sprinklers are activated.

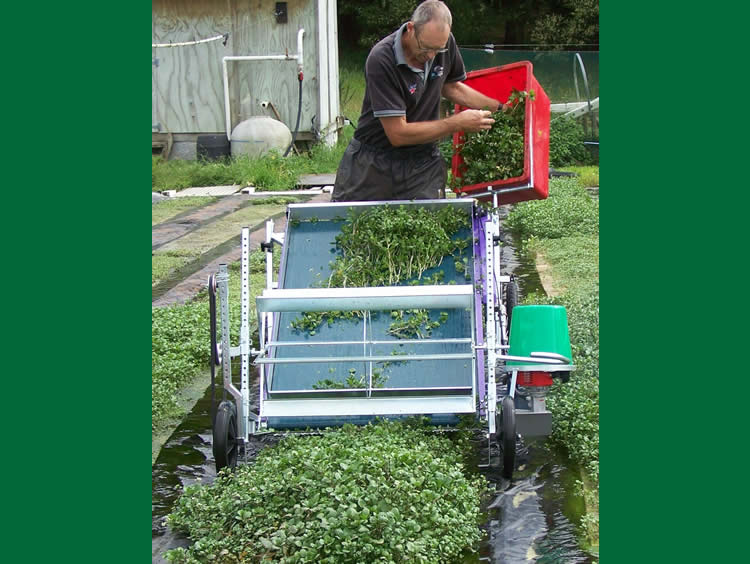

In use, the operator typically straddles the row and nudges the harvester forward with his body, so leaving hands free. As the watercress is cut it moves up the conveyor, where the operator gathers the crop into bundles and packs them into a collection bin.
There is a top fence across the conveyor to bunch the crop if the operator can’t keep up. Although the HT-Cress is supplied with crop pick up fingers, operators may prefer to go up each row ‘heaping’ up the sides with a broom before harvesting. This seems to work well.
Also available as a self propelled model, and / or with 24V DC power to drive the cutter bar and belt (plus wheels in the case of the self propelled model).
Adjustable cutter height, from 40mm up to 400mm using the small front wheels
Cutting width is 800mm
Wheel track of approx 1010mm front, 1135mm rear
Engine driven conveyor belt only drives when the engine is revved up
Conveyor belt is a heavy duty horticultural type which can easily be cleaned
Frame is fully zinc plated for low maintenance
Wheels have quick release pins allowing compact storage or easy transporting in a vehicle
Cutting height (cutter bar above wheel ground level): adjustable 40mm to 400mm
Cutting width: 800mm
Wheel track: approx. 1010mm front, 1135mm rear
Wheel drive: none
Belt speed: n/a
Weight, dry: 53kg: c/w In Feed Reel 68kg

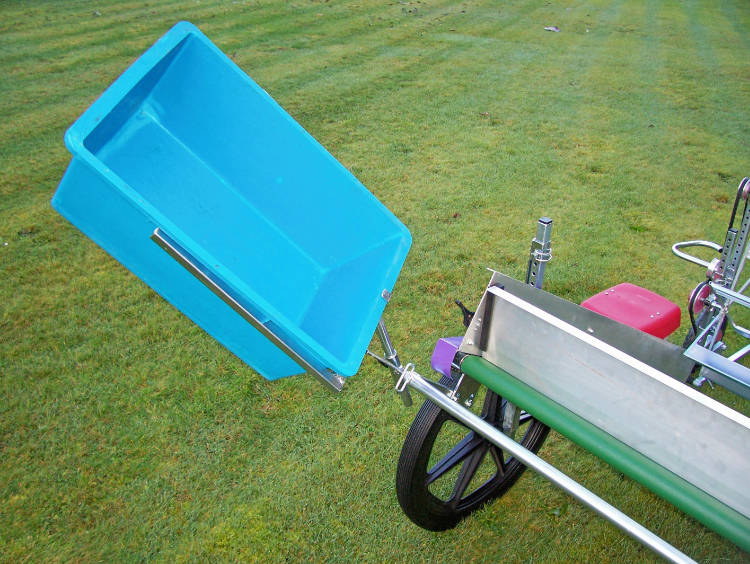

Collecting bin / bag: optional fish bin or made to suit customer’s bin
Engine: Husqvarna Zenoah G23LH-EZ (used to be Komatsu Zenoah) 22.5 cc air cooled 2 stroke gasoline engine
Dimensions (standard model):
<
Length (mm) | Height (mm) | Width (mm) | cu.m (approx.) | Kg (approx.) | |
Ready to use. | 1360 | 1980 | 940 | 68 | |
For freighting (on pallet)
|
1.77 | 120 |
Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.
The base price is for the HT-Cress model with petrol engine driven cutterbar.
Options (all prices excl. GST, ex. factory): | Price | |
---|---|---|
24V DC powered cutterbar HT-Cress-24VDC model | Please enquire | |
24V DC self propelled option (cutterbar still engine driven) HT-Cress-SP | add NZ$3500.00 | |
Full 24V DC powered self propelled model (no engine) HT - Cress - 24VDC - SP model | Please enquire | |

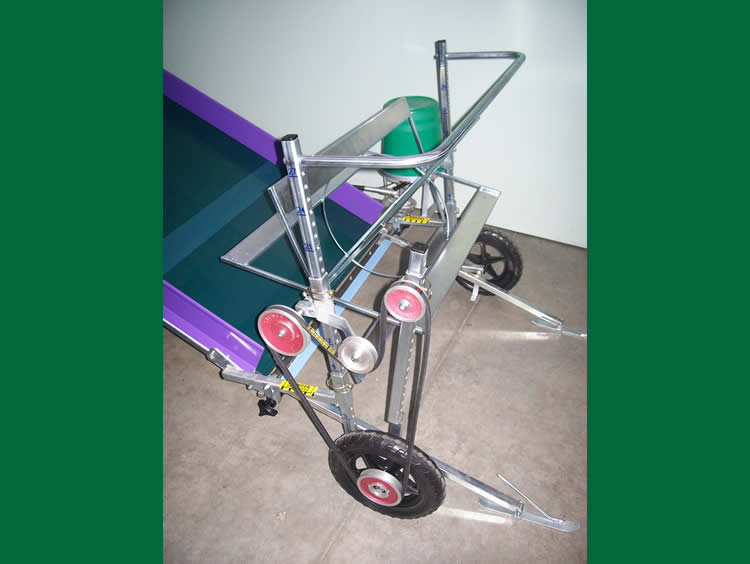

In feed reel (ideal if you are topping the crop) | add NZ$770.00 | |
Recrate collection bins in 75 size (download PDF of recrate sizes) | $60.00 | |
Park brake (for use on slopes to prevent running backwards only) | Please enquire | |
Crop lifter side shift | $230.00 | |
Full width lift handle | Please enquire | |
Transport wheel | Please enquire |
Watch videos:
Parts lists are available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.
When placing a parts order, please quote the parts list drawing title, item number required and quantities.
You can download the following documents:
