HH-Harvesters

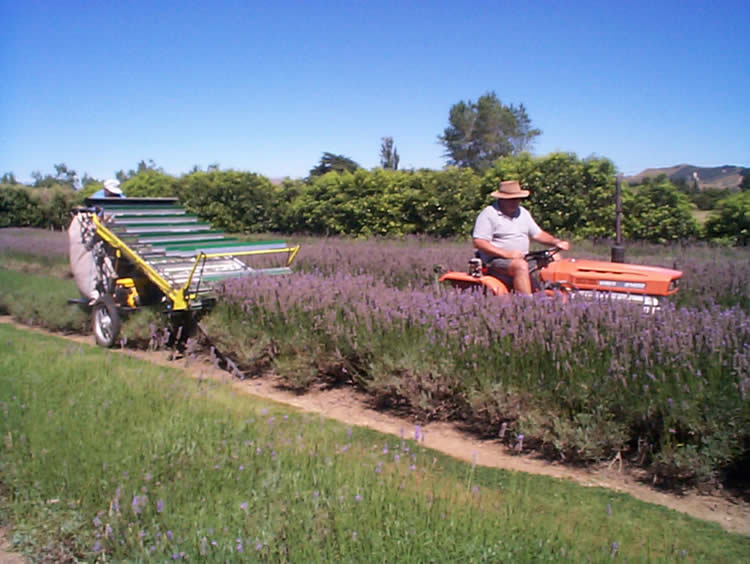

HH Harvesters in use right hand view

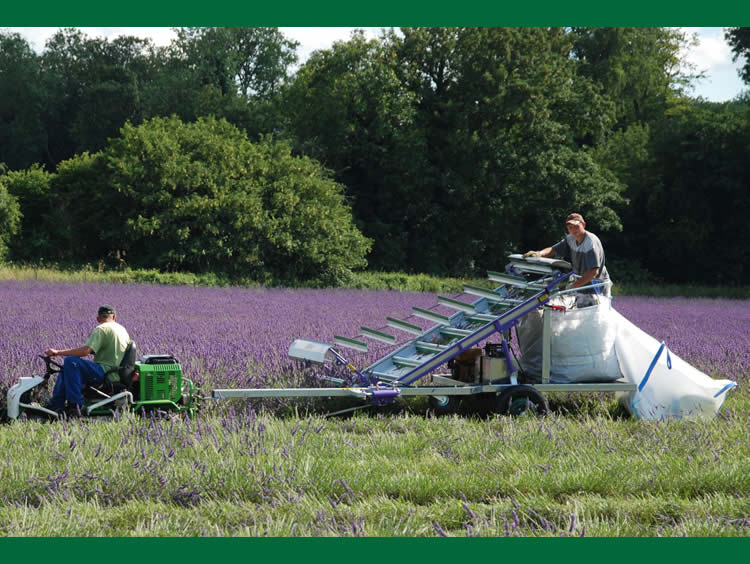

HH Harvesters in use left hand view

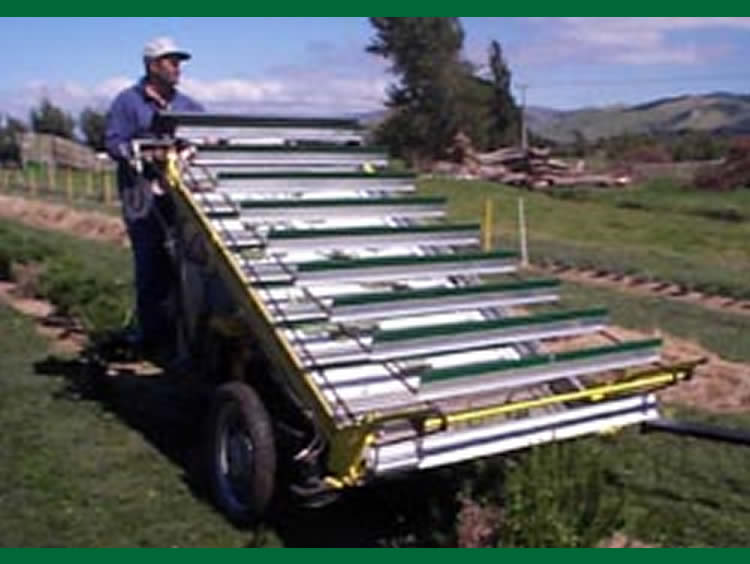

HH Harvesters front

Base price: NZ$ 30227.00

(all prices excl. GST)

Availability:

ex. factory

Delivery:

NZ delivery typically within three weeks.

The HH-Harvesters have been developed specially to harvest herbs for oil production. Although designed initially to harvest lavender, these harvesters and options available for it are capable of harvesting a wide range of crops including Rosemary, Manuka (Tea Tree), Horopito and other crops for essential oils.

More suitable for larger areas, sloping ground or for harvesting bulky crops.

Available in two models:

HH - 2002 - CT towed with hydraulic supply coming from a small tractor
HH - 2002 - CTP towed but with its own hydraulic power pack

All drives heavy duty hydraulic.
Hydraulic raise and lower of cutting head.
Hydraulic offset drawbar aids in alignment with crop and makes manoeuvring easier at headlands, through gateways and for travelling.
Adjustable finger width to suit different size bushes.
Wheel track is 1500mm to suit horticultural crops.
Standard chassis height is 500mm, although some crops (e.g. lavender) can be cut higher than this.
It has in feed features (i.e fingers) to suit individual crops feeding the crop to a balanced double reciprocating cutter bar.
Conveyor width is 1200mm, the conveyor feeding the product into vegetable bins or large bags (fadges).
There is room on the machine for one or two people packing product, etc.

Cutting height (cutter bar above wheel ground level): from ground level to above 500mm chassis height
Cutting width: 1200mm
Wheel track: 1480mm
Wheel drive: none
Belt speed: variable
Hydraulic system / requirement: 16.2LPM @ 159Bar (2300PSI)
Weight, dry: 410Kg
Collecting bin / bag: 2 x bag standard – supplied as an option
Engine (HH - 2002 - CTP): 9hp Robin 4 stroke or similar
Dimensions (standard model):

Width(mm) Length(mm) Height(mm) cu.m(approx.) Kg(approx.)
Ready to use 1820 max. 4630 1900 - -
For freighting - - - 11 410

Width(mm)	Length(mm)	Height(mm)	cu.m(approx.)	Kg(approx.)
Ready to use	1820 max.	4630	1900	-	-
For freighting	-	-	-	11	410

Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.

The base price is for the HH-2002-CT towed model, external hydraulic supply from a small tractor required. For special requirements not listed below, please contact us to discuss.

Options (all prices excl. GST, ex. factory):		Price
HH-2002-CTP towed model with own hydraulic power pack		add NZ$4700.00
HH-2002-CSP self propelled and powered model		Please enquire
Wheel fingers*		Please enquire
Low cutting head — for crops cut below 250mm high		Please enquire
Higher chassis height		Please enquire
Portable guided trimmers to cut the crop in the same way each time (great for cooking herbs)		Please enquire
Side trimming attachments		Please enquire
Bin holders		Please enquire

* simple bolt-on devices which guide the crop past the tractor wheels, required where row spacing is close or there is very heavy growth.

Watch videos:

Parts lists are available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.

When placing a parts order, please quote the parts list drawing title, item number required and quantities.

You can download the following documents:

Handbook HH Harvesters (3 MB)
