HT-Shaver-BD (Bottom Drive)

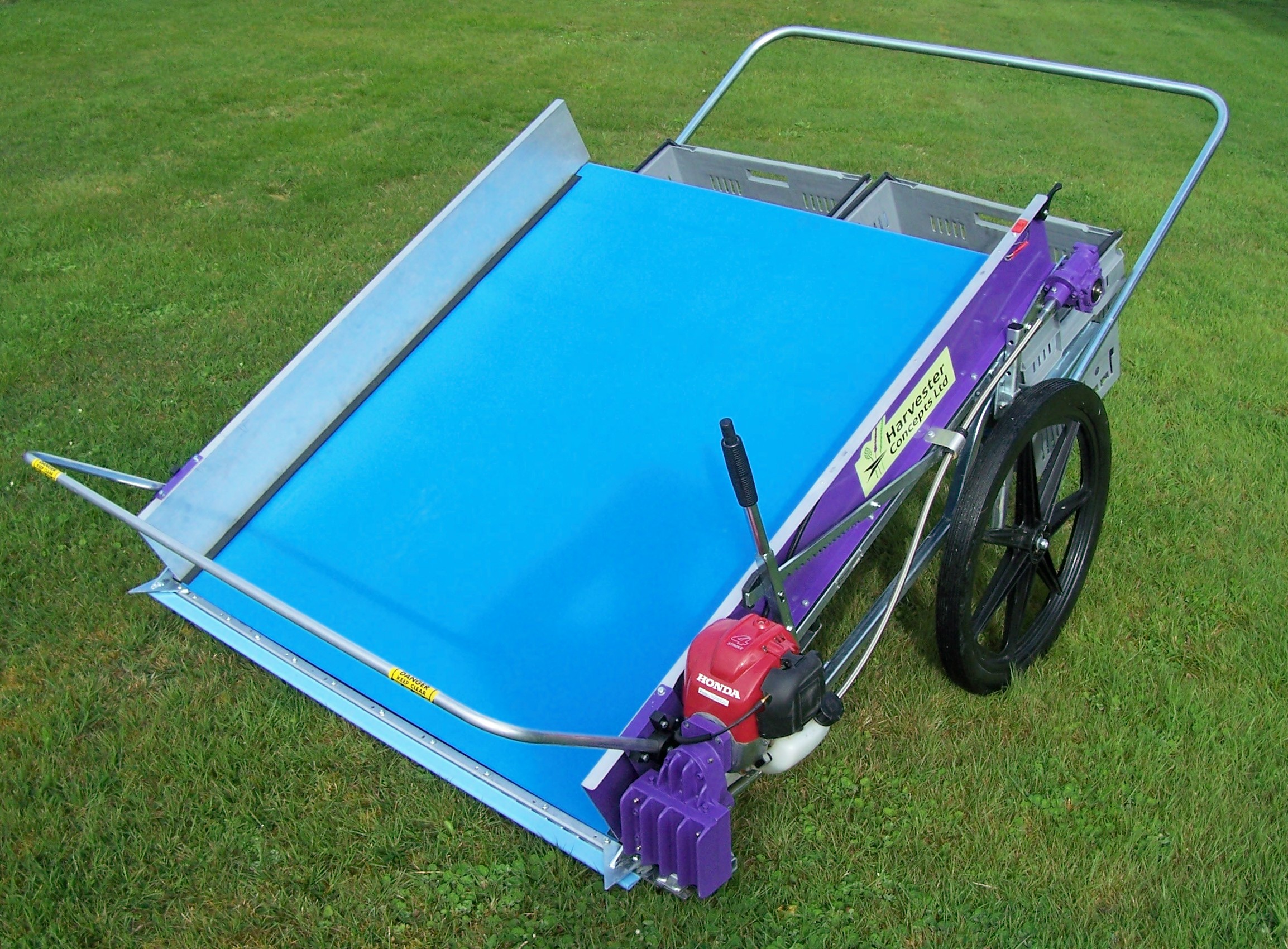

HT Shaver BD full view

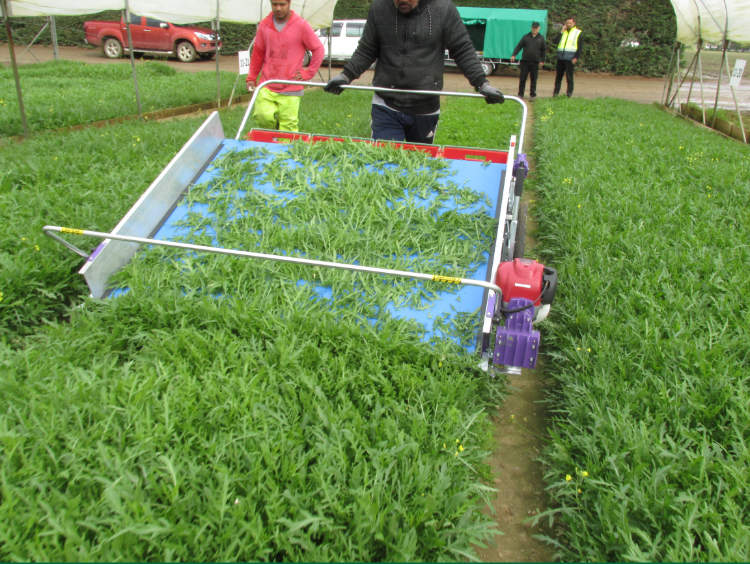

HT Shaver BD1600 in use

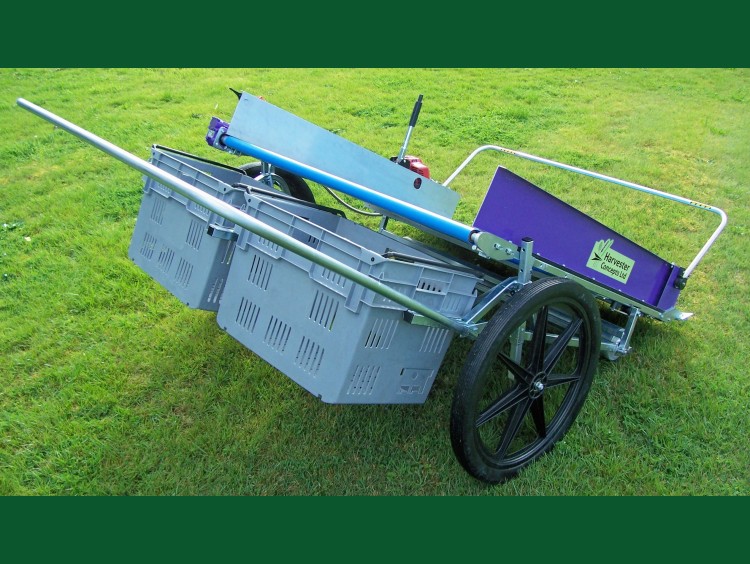

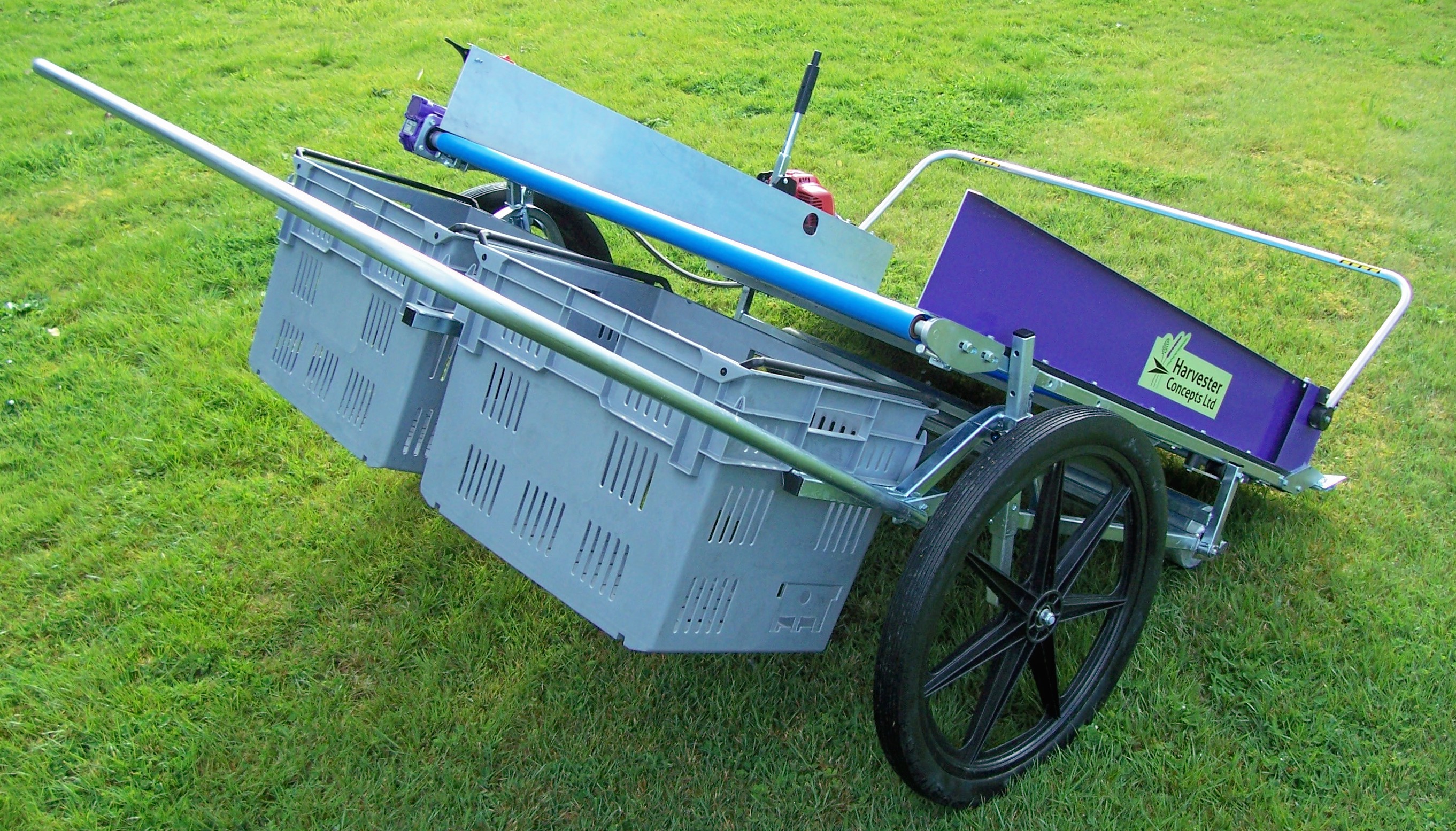

HT Shaver BD collection bins mounting

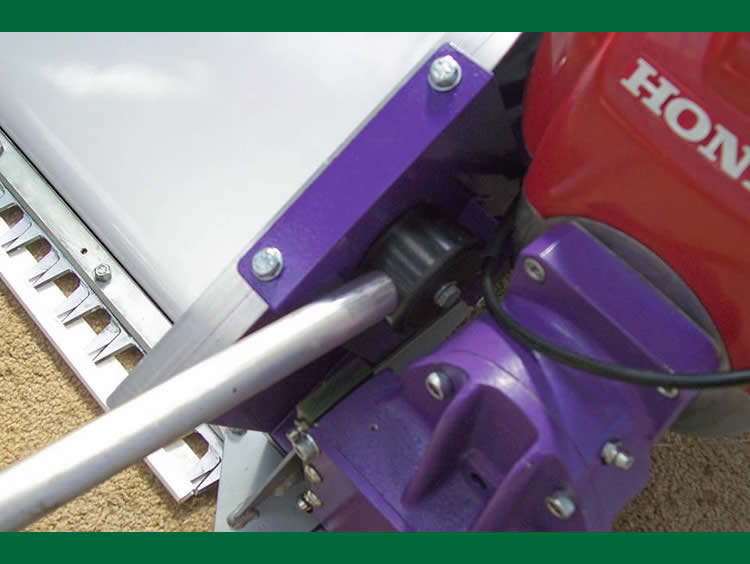

HT Shaver BD cutterbar drive

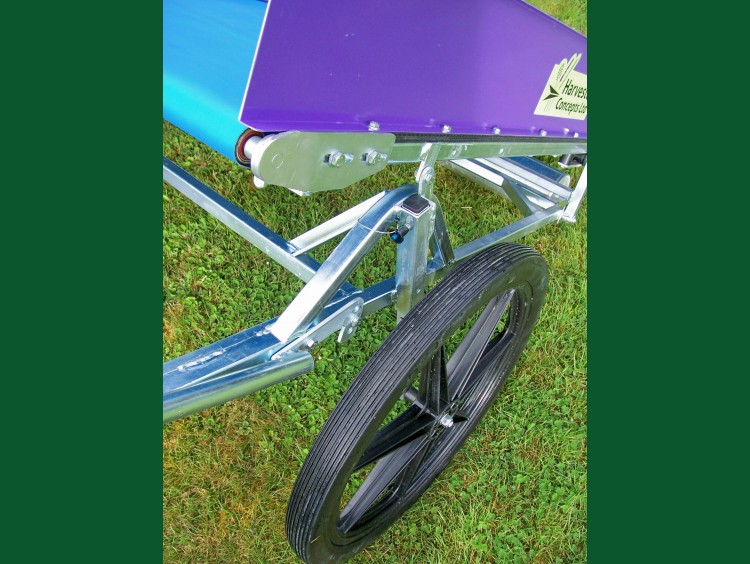

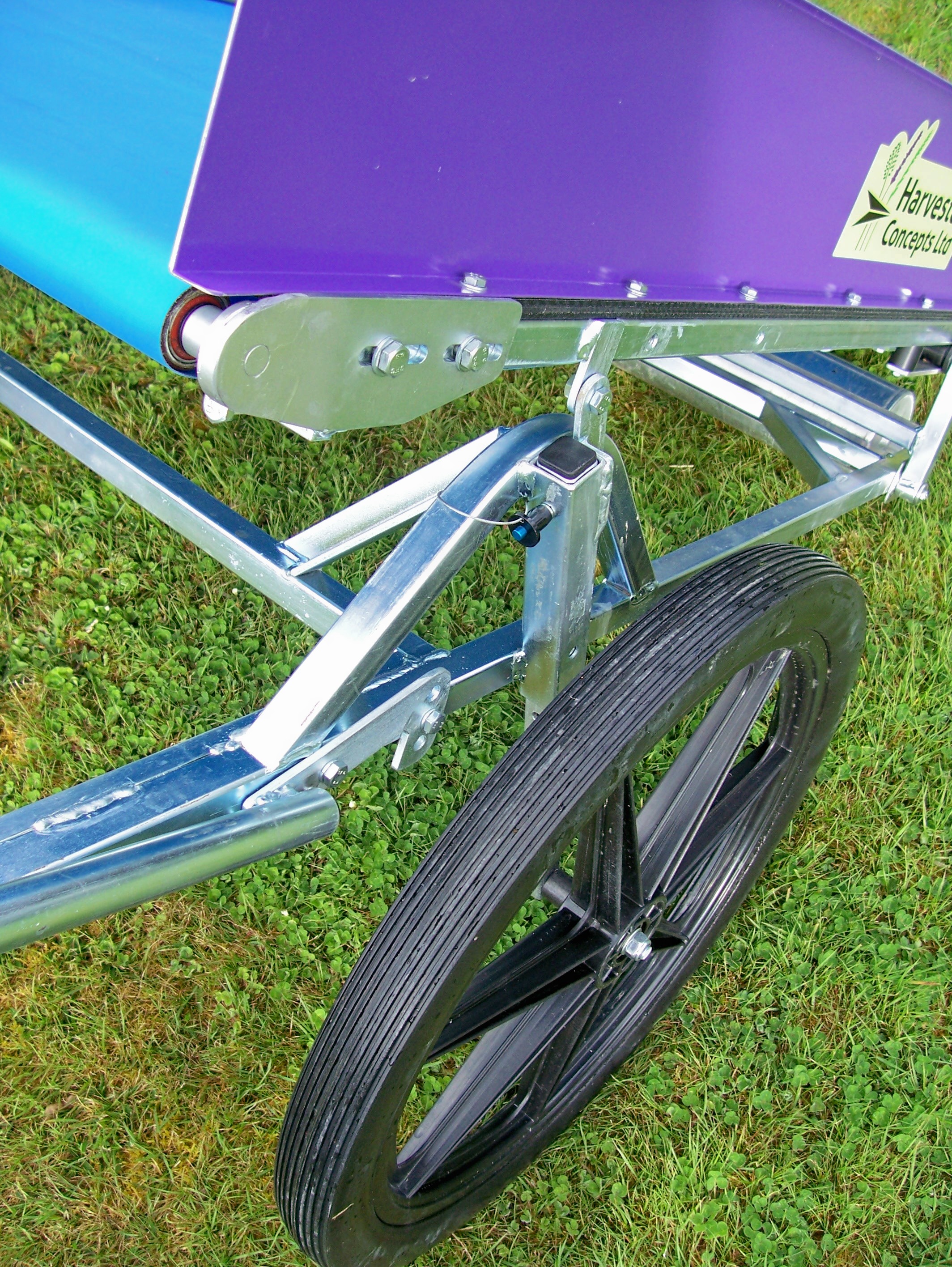

HT Shaver BD belt tensioning mechanism

HT options 24v cutterbar

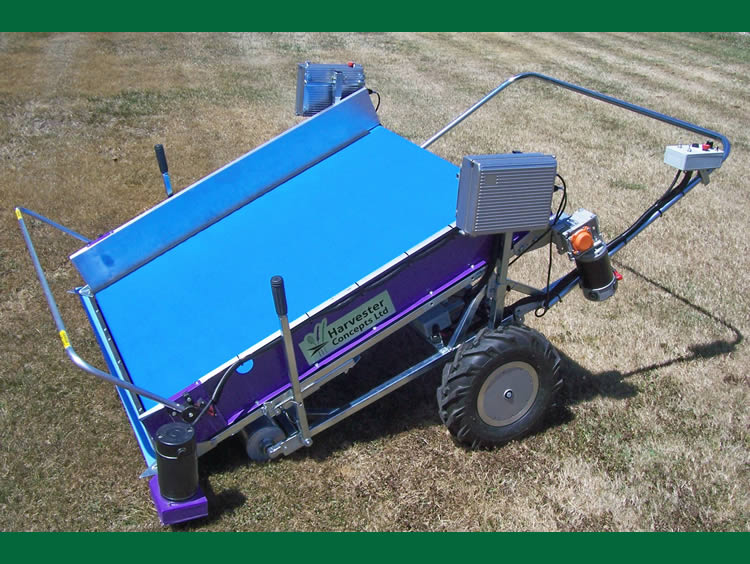

HT Shaver BD 24VDC self propelled left side view

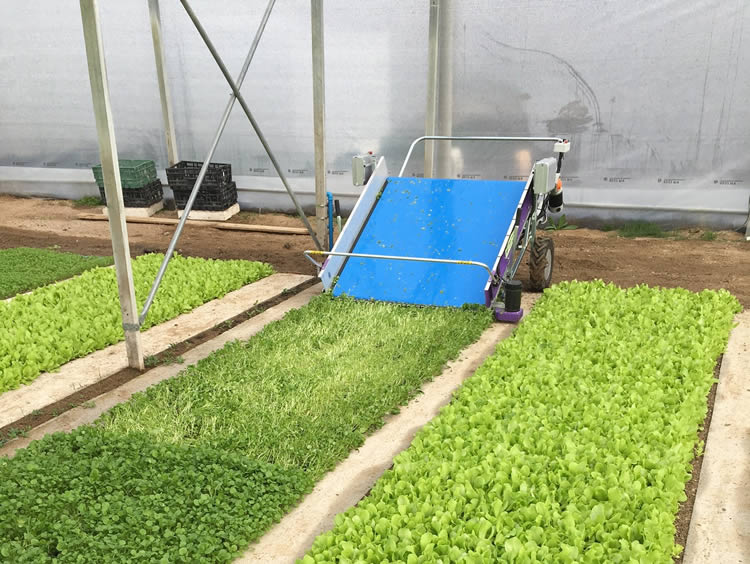

HT Shaver BD 24VDC self propelled with crop

HT options bin holder

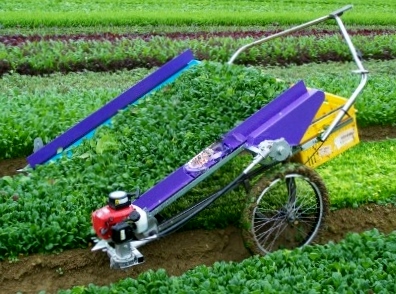

HT Shaver RB in use

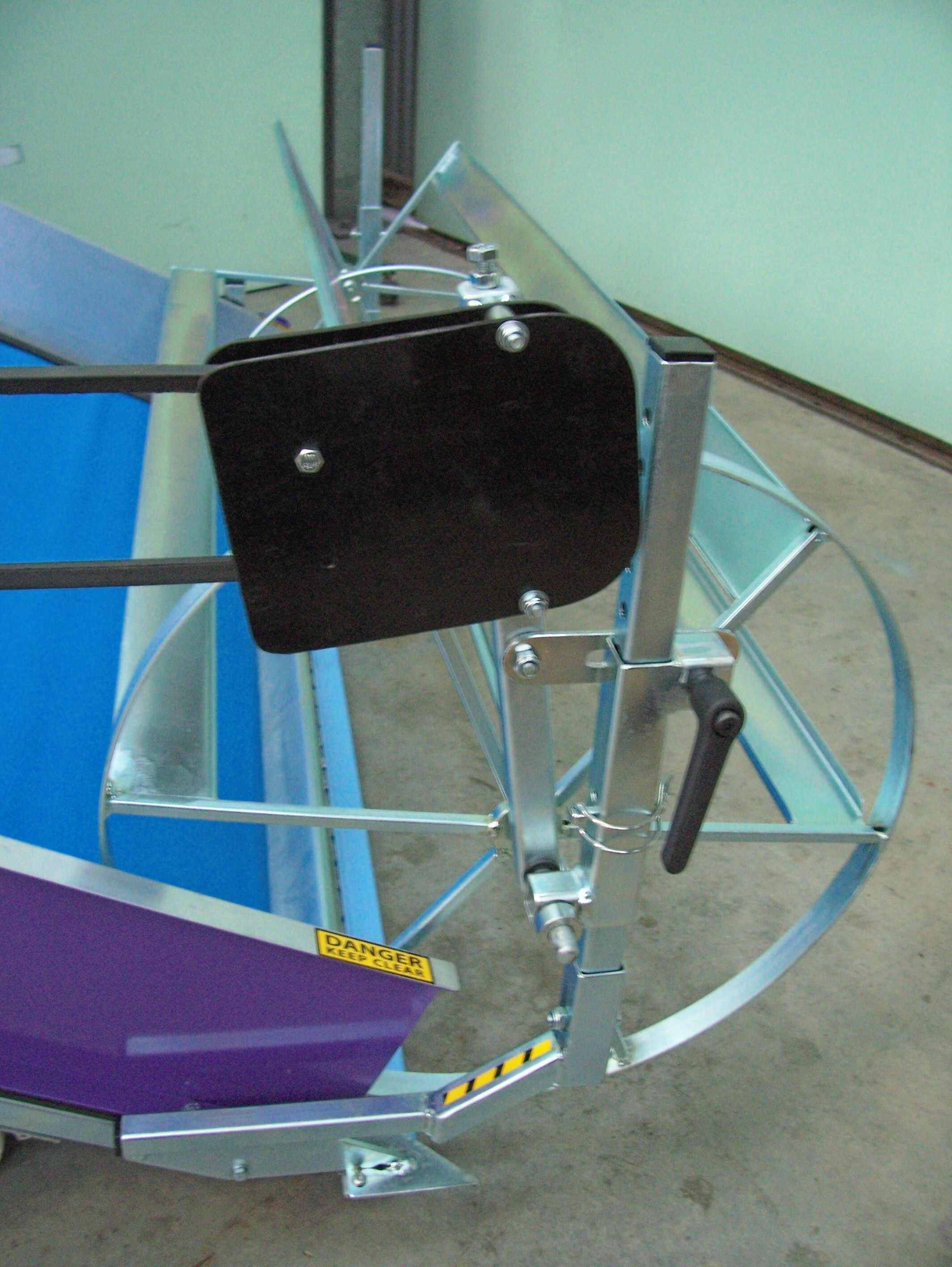

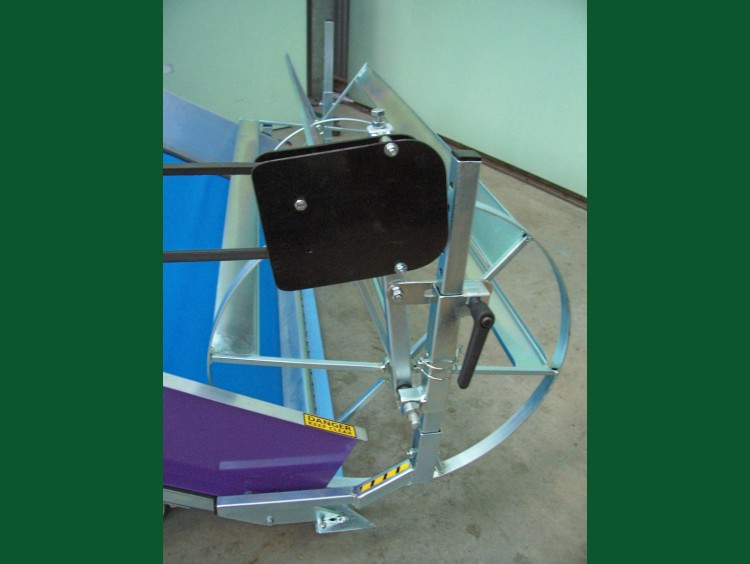

HT SH FB SP special reel RH

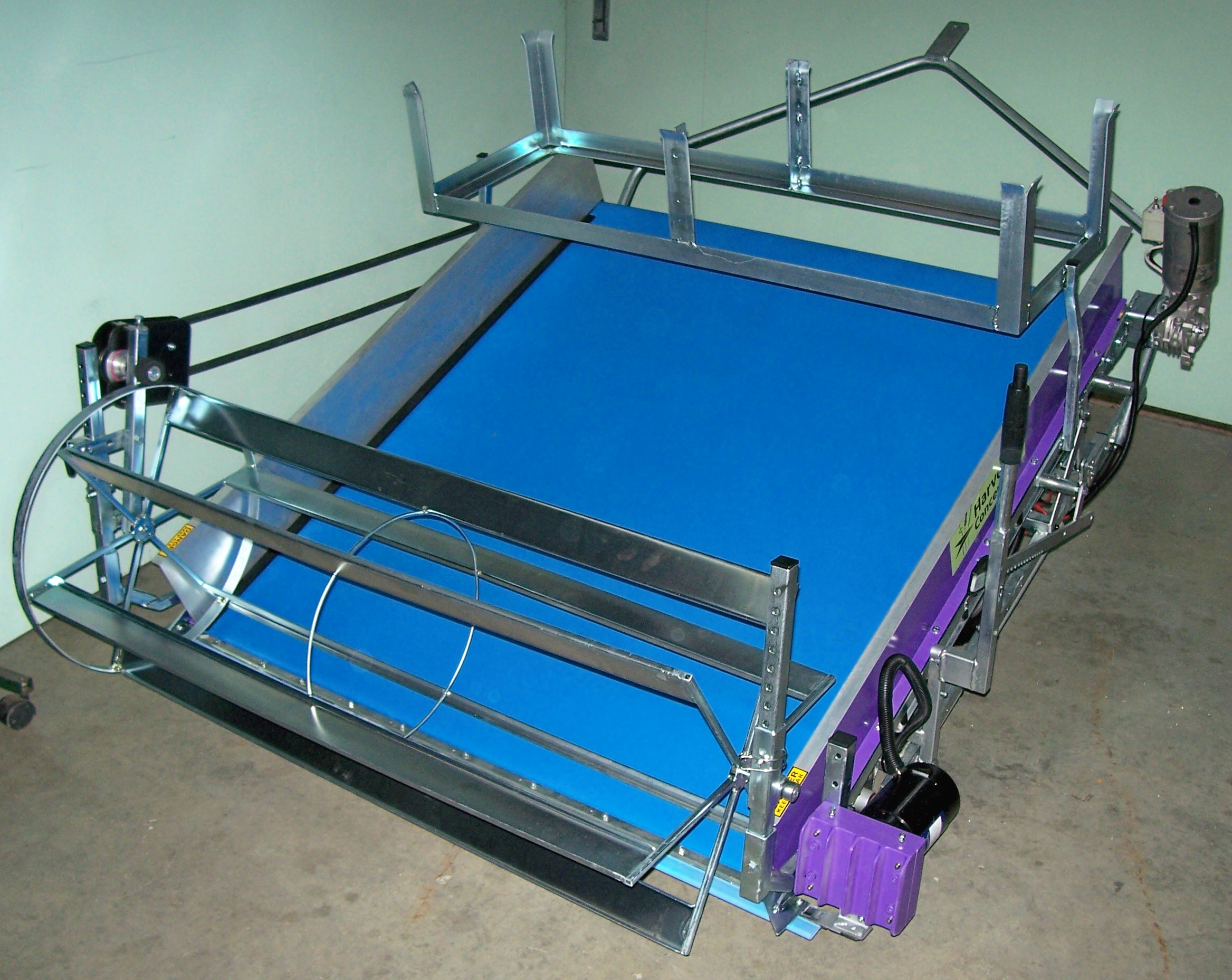

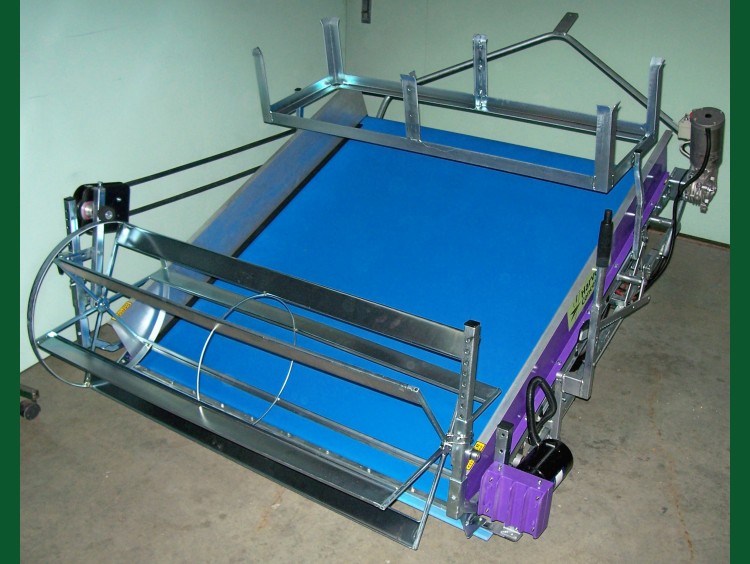

HT SH FB SP special

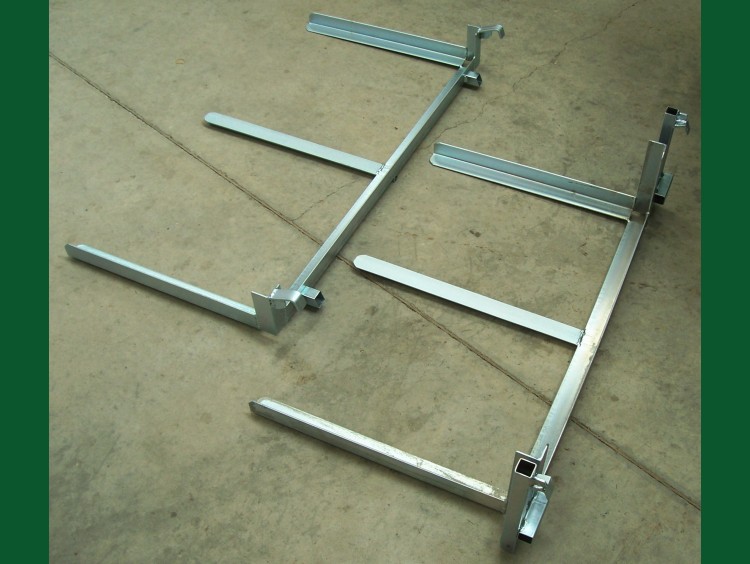

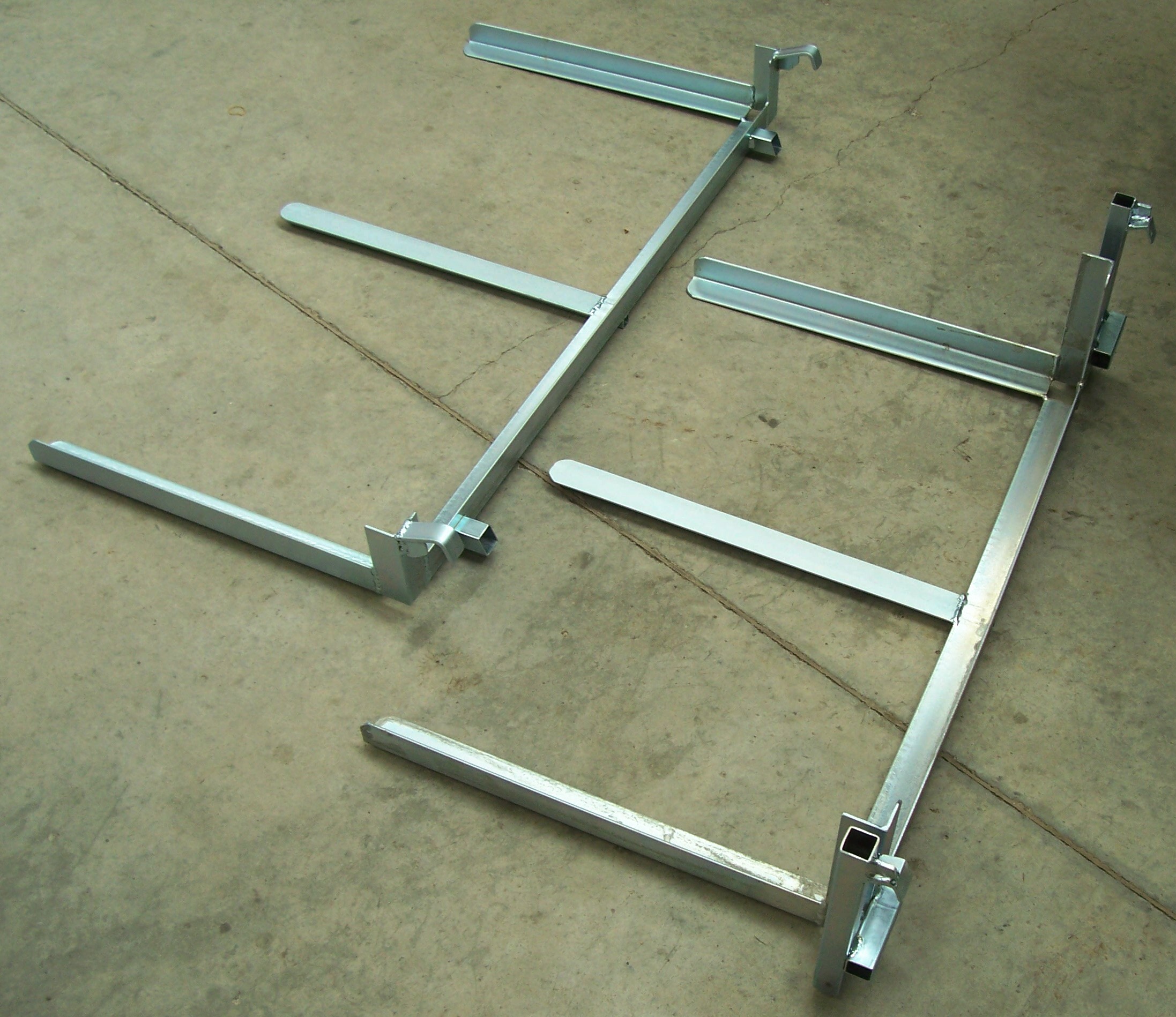

Bin Holders Hook On

Base price: NZ$ 12385.00

(all prices excl. GST)

Availability:

ex. factory

Delivery:

NZ delivery typically within three weeks.

The HT-Shaver-BD (Bottom Drive) harvester is designed for harvesting flat bed, raised bed or field grown plants. The HT-Shaver-BD has a bottom drive gearbox for the cutter bar — nothing protrudes below the cutter bar. As the engine protrudes out one side of the harvester, the engine must be in a walkway or over the harvested area of the field. The gearbox is heavy duty and the engine is a Honda 4-stroke GX25.

With the collection bins removed and the cutter head raised it will clear uncut crops allowing easy manoeuvring of the harvester.

This is a serious harvester capable of harvesting more than 6 tonne of salad type crops per week! Typical crops the HT-Shaver-BD harvest include loose leaf salad plants and low growing herbs such as thyme, Rocket, Arugula, Baby Spinach, Baby Greens, Cress, Endive, Mache, Mizuna, Mesculin, Romaine, Spinach, Tatsoi, Baby Beet, Mache, Chicory, Micro Greens and others.

Also available as a self propelled model, and / or with 24v DC power to drive the cutter bar and belt (plus wheels in the case of the self propelled model). Click on the 'Options' tab for more detail.

Adjustable cutter height from ground level up to 80 mm
Engine driven industrial grade conveyor belt only drives when the engine is revved up
Heavy-duty, low maintenance drive line
4-stroke Honda GX 25 engine
Holds 2 recrate 75 vege bins
Light weight frame zinc plated for durability
Easily used by one operator who can walk behind the harvester or offset in a wheel track
Cutting action controlled from operator’s position

Cutting height (above bed): 10 mm (effectively ground level) to 80 mm
Cutting width: 1200 mm
Wheel track: 1415 mm centre lines
Wheel drive: none
Belt speed: 19.5 m/min max
Weight, dry: 42 kg
Collecting bin / bag: recrate 45 or 75
Engine: Honda GX 25 4-stroke using unleaded gasoline

Dimensions:

	Width (mm)	Length (mm)	Height (mm)	cu.m (approx.)	kg (approx.)
Ready to use	1600	2330	-	-	-
For freighting (on pallet)	1650	1750	850	2.4	80

Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.

The base price is for the HT - Shaver - BD model with petrol engine driven cutterbar and framing to hold 2 recrate 75 vege bins.

36v DC self-propelled option (cutterbar still engine driven) HT - Shaver - SP

Options (all prices excl. GST, ex. factory):		Price
HT-SH Harvester- BD 1600		NZ$13140.00
Recrate collection bins in 45 or 75 sizes (download PDF of recrate sizes)		NZ$60.00
Spare or empty bin holder		NZ$300.00
Holder for different bin sizes Bin Holders, Hook on		Please enquire
In Board Mounted Wheels In-Board-Mounted-Wheels-.pdf		Please enquire
HT-SH Harvester -BD 1200 - 24VDC		NZ$10585.00
Self-propelled 36v DC (cutterbar still engine driven) HT - Shaver - SP		add NZ $3500.00
Self-propelled & 24v DC Powered model (no engine) HT - Shaver - 24vDC - SP model		NZ$14085.00

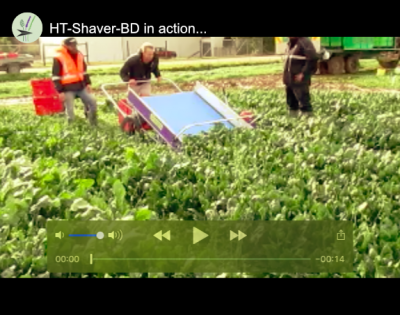

Watch videos:

Refer to the handbook for routine maintenance.

Parts lists are also available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.

When placing a parts order, please quote the parts list drawing title, item number required and quantities.

Preventative Maintenance

You will become reliant on the harvester to do its job and if a breakdown was to occur you could find yourself in an awkward predicament. We recommend regular maintenance to help avoid breakdowns.

As well as the maintenance in the hand book we recommend at least annually, for regular users, stripping the reciprocating gearbox at the end of the cutter bar. Regardless of condition, replace all bearings and the two drive links which also hold bearings. Preload the housing with some grease but not full or it can hydraulic and jam the drive.

You can download the following documents:

Handbook HT Shaver BD (688 KB)
