HT-KumaP
HT KumaP in use

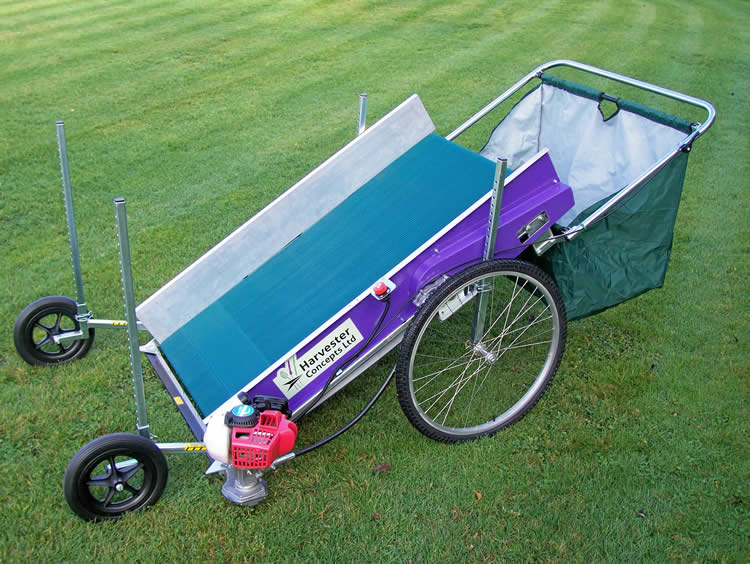

HT KumaP DX2 model

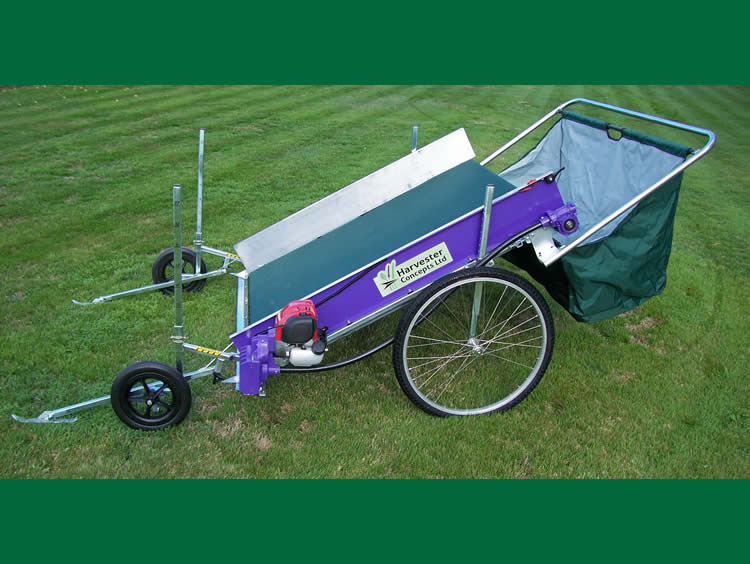

HT KumaP1200 BD model

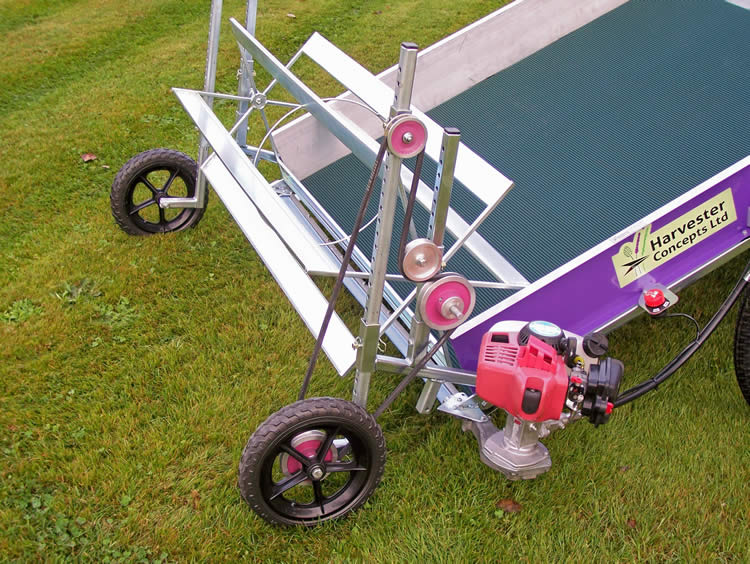

HT KumaP reel drive

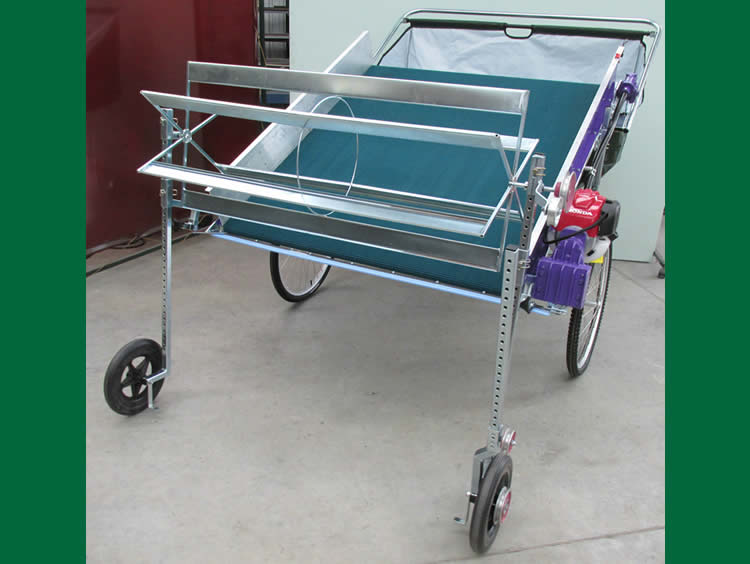

HT KumaP high rise model

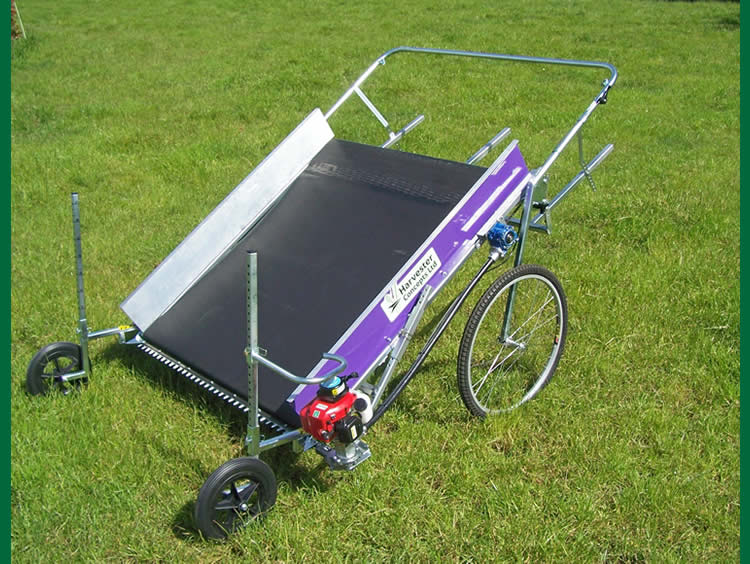

HT KumaP high speed model

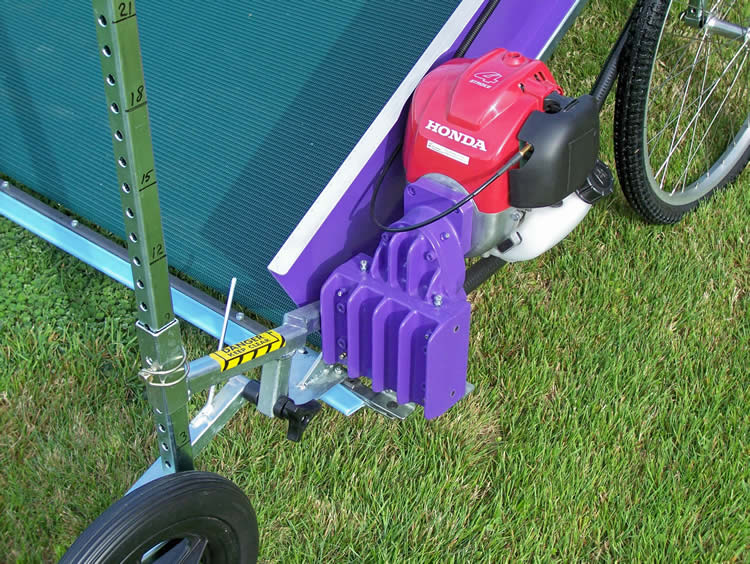

HT KumaP-BD drive line

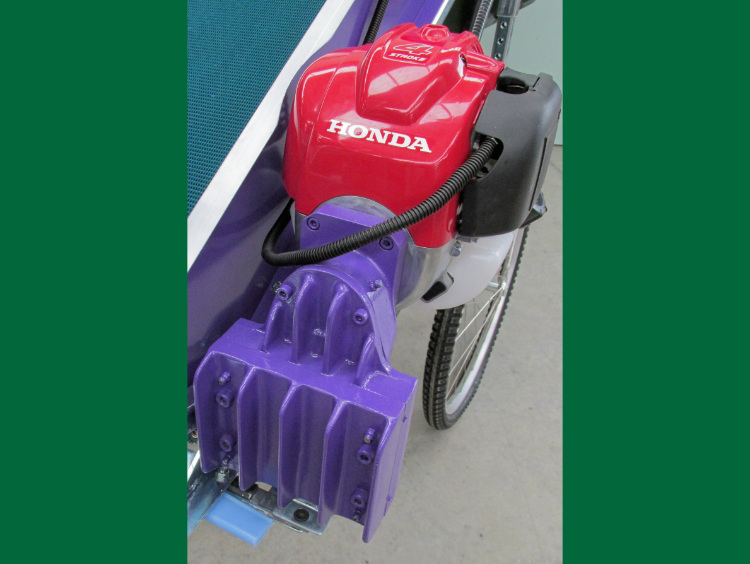

HT KumaP BD model gearbox closeup

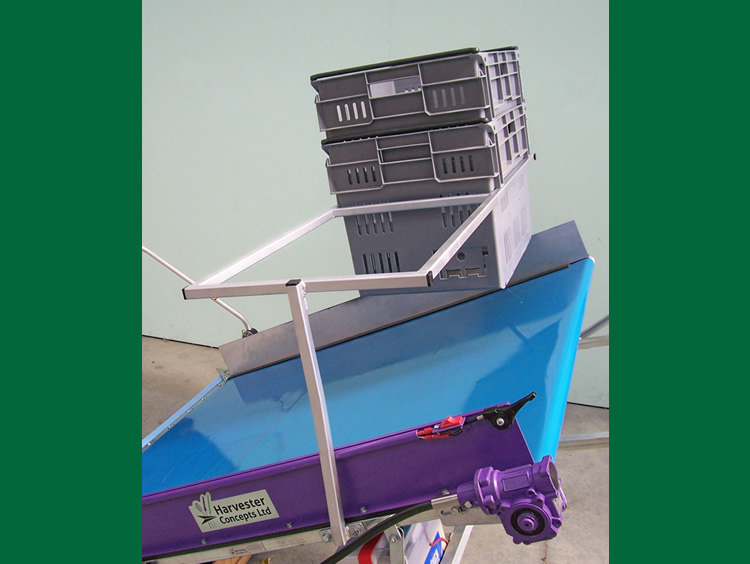

HT options bin holder

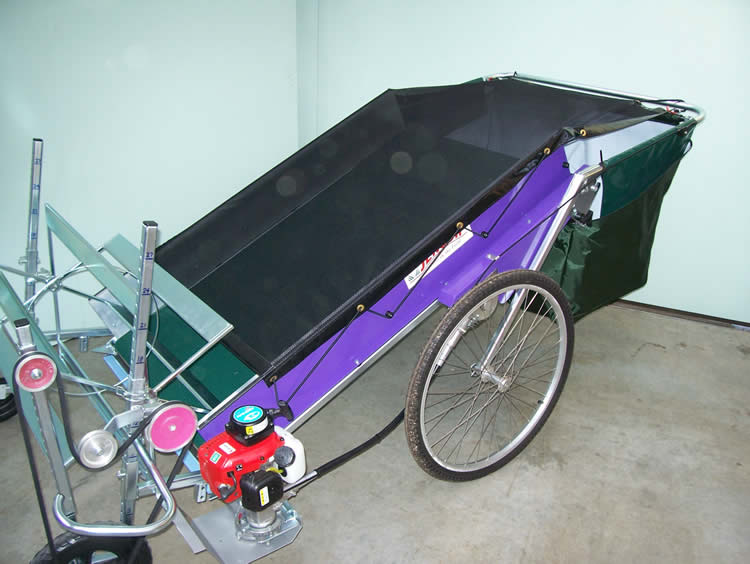

HT KumaP wind cover

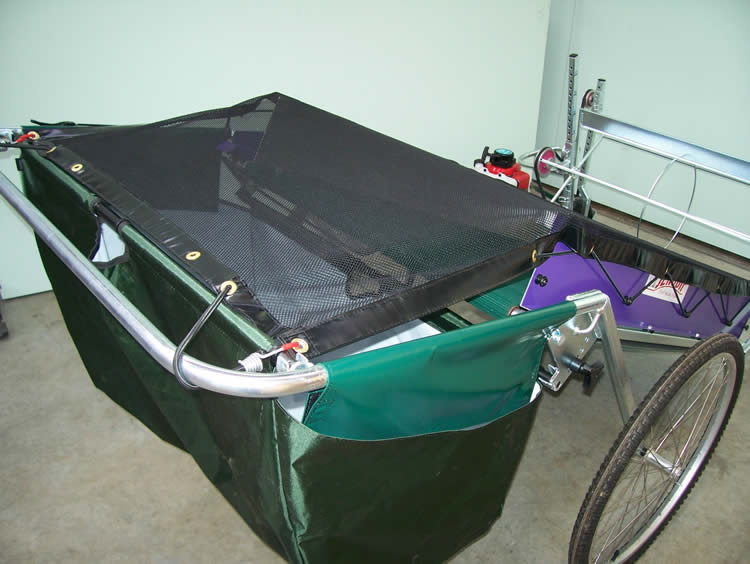

HT KumaP side wind shields plus wind cover

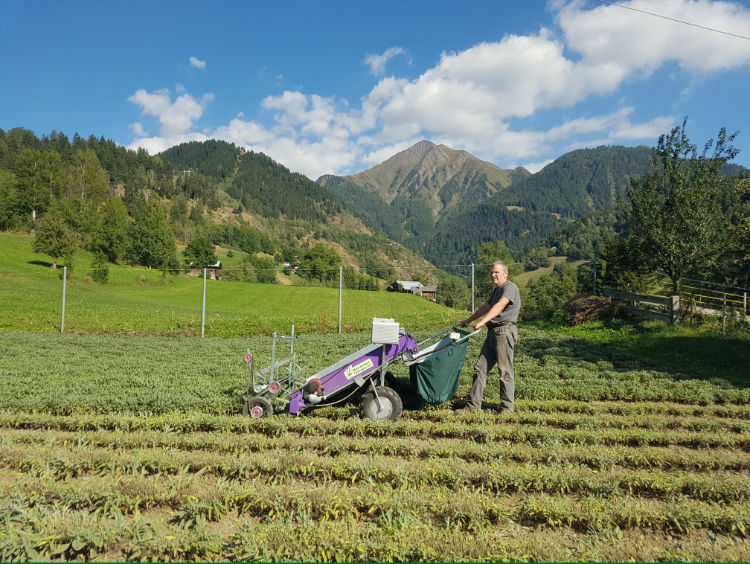

HT KumaP 24VDC self propelled option
HT KumaP DX2 model with reel option

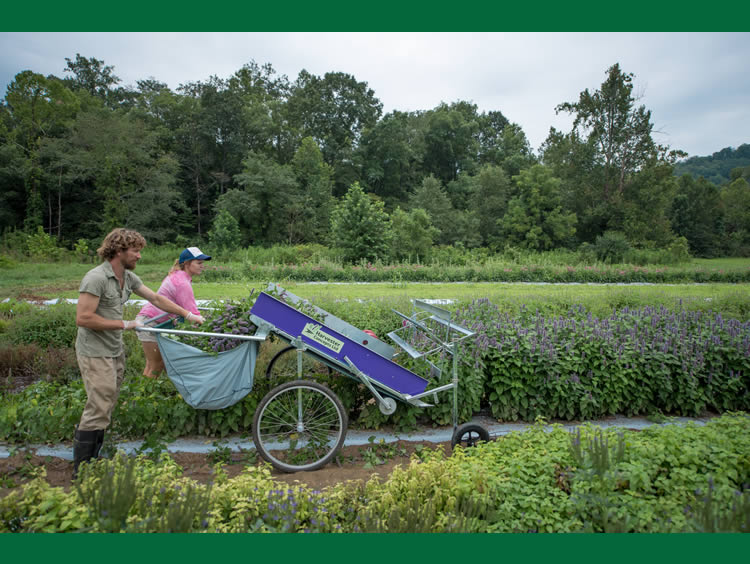

HT KumaP with reel option in use

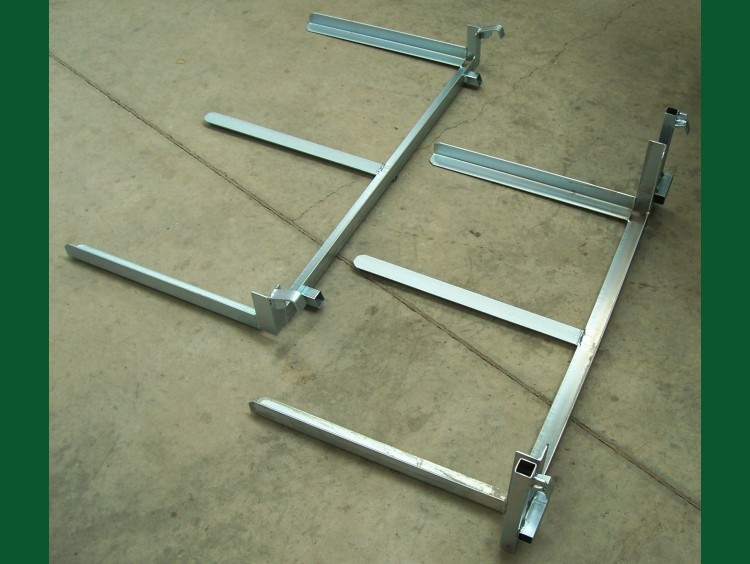

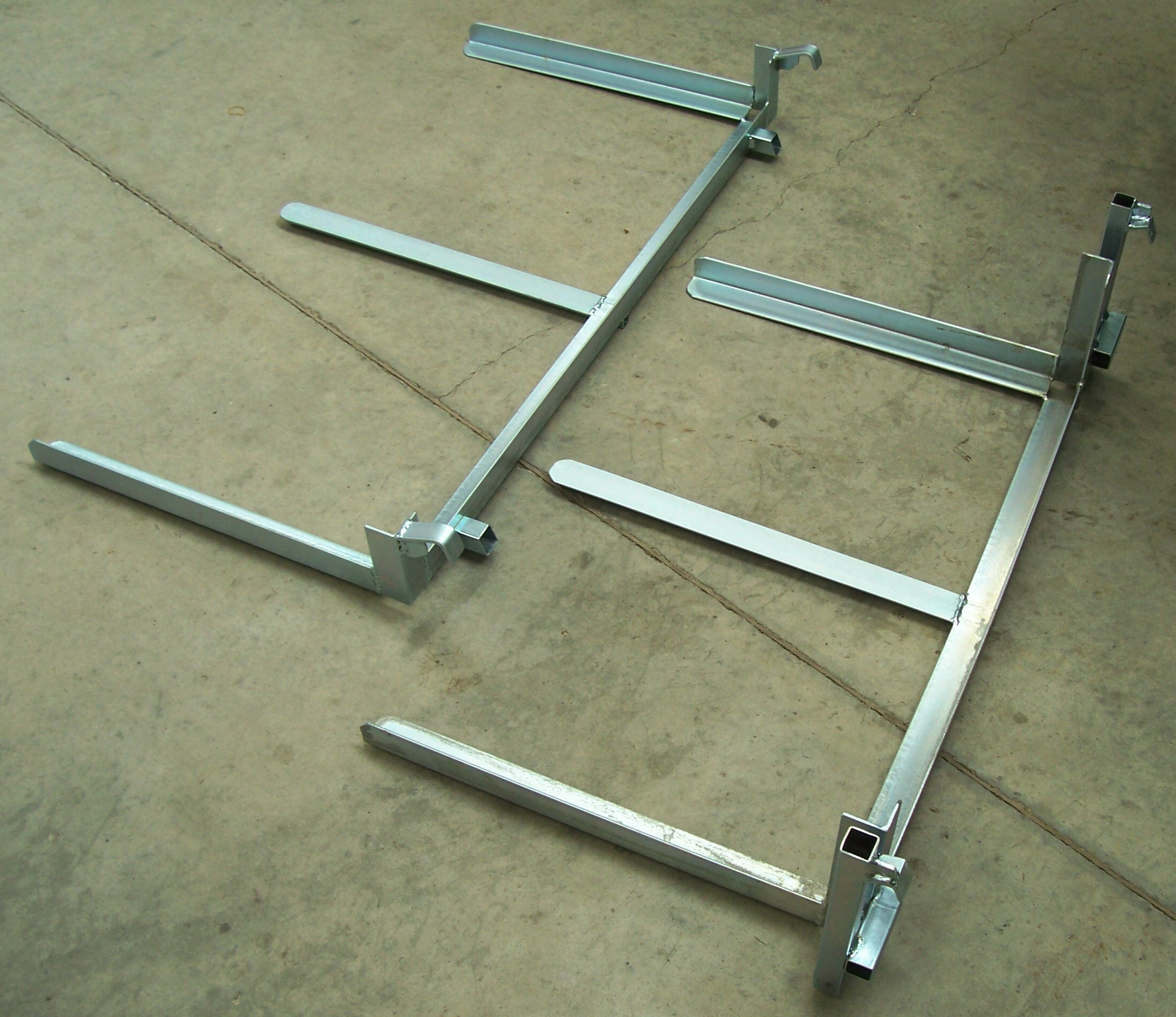

Bin Holders Hook On v3

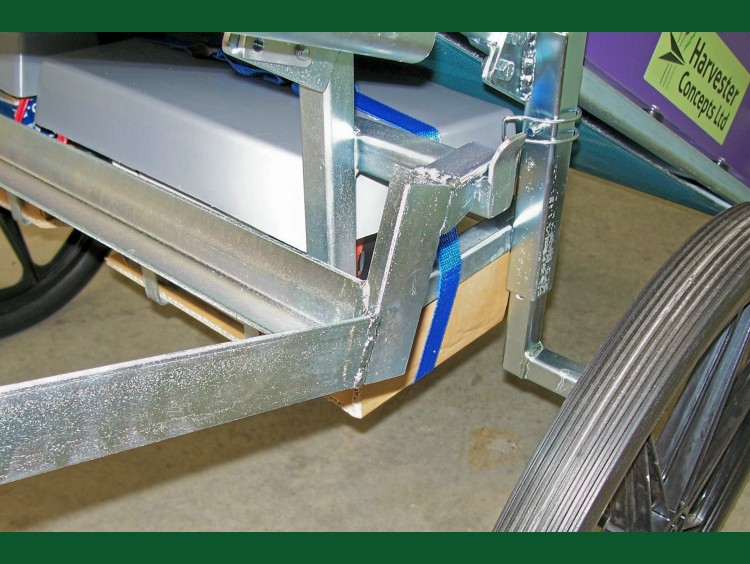

Bin Holders toolbar B

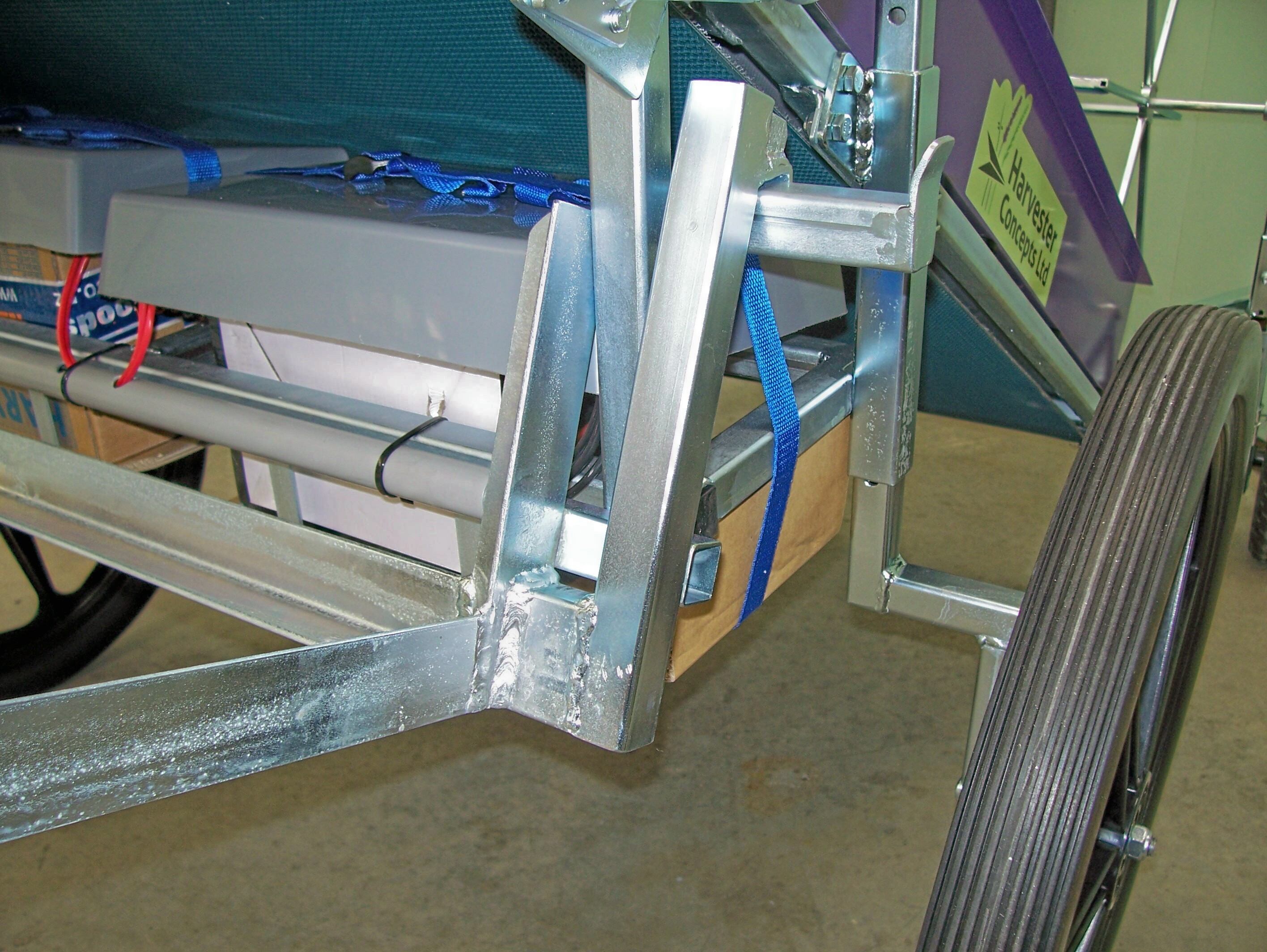

Bin Holders toolbar

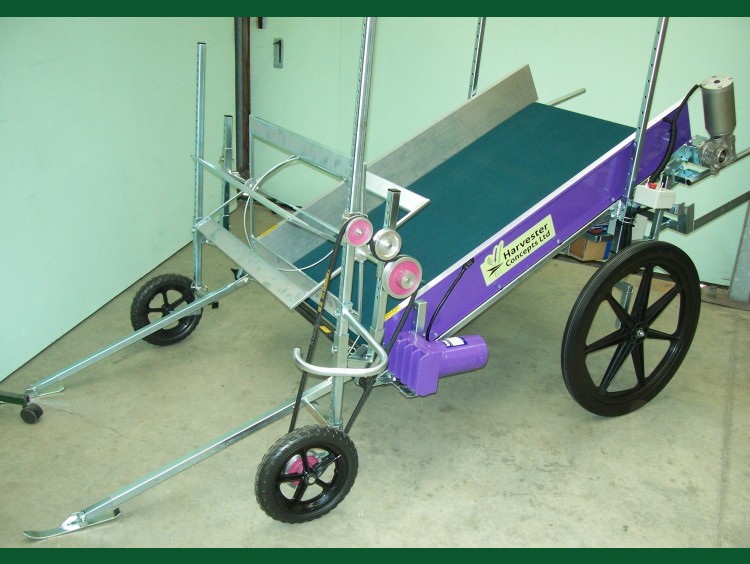

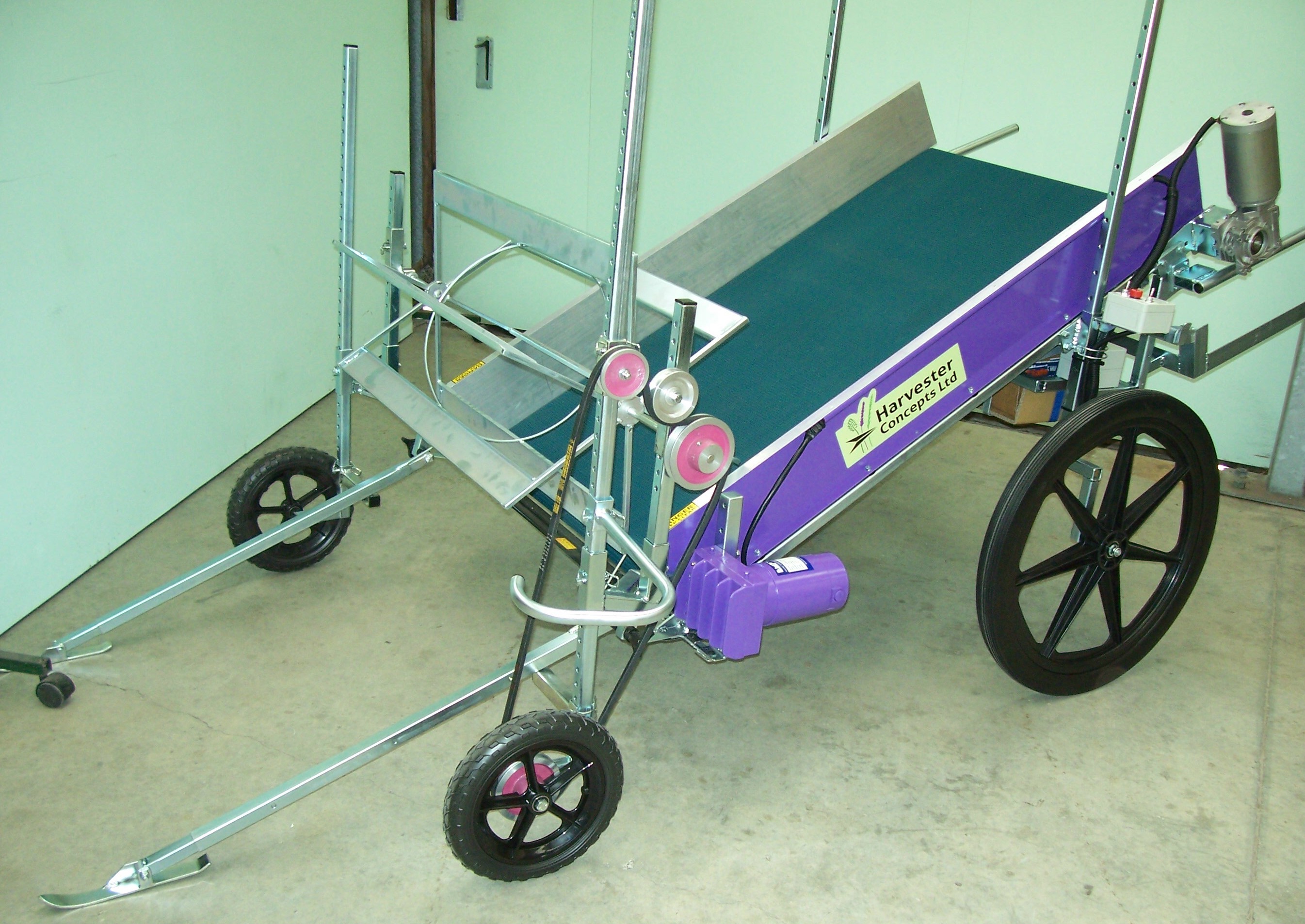

BD 24 VDC USA B
Base price: NZ$ 8092.00
(all prices excl. GST)
Availability:
ex. factory
Delivery:
NZ delivery typically within three weeks.
The HT–KumaP harvester is very versatile and can be used with a variety of crops. Its motorized trimmer cuts the crop at a preset height. The conveyor belt is also powered by the engine, transporting the cuttings up and into a collection bag. The base price is for the 800mm wide harvester.
-
Trial blocks: for cutting and collecting vegetation, the collection bag making it easy to weigh vegetation ( i.e. Pasture Trial Blocks)
-
Herb harvesting: will straddle the row, cutting the crop to a uniform height and place the trimmings into the collection bag
-
General trimming: pruning crops or shrubs to height
-
Clean-up: cutting rank grass or collecting up surplus vegetation
Also available as a self propelled model, and/or with 24V DC power to drive the cutter bar and belt (plus wheels in the case of the self propelled model).
Typical crops the HT-KumaP can harvest including Pasture Trial Blocks, Water Cress, Mints, Lemon Verbina, Basil, Lemon Thyme, Melissa, Sage, Oregano, Stinging Nettle, Rosemary, Passion Flower, Lemon Balm, Peppermint, Spearmint, Margoram, Savory, French Tarragon, Camomile Oil Extraction Plants (Horopito), and taking cuttings for propagation.
Customer Comments:
The machine works perfectly. It saved us time, cost and effort. It arrived in perfect condition.
The standard power head used is the Ochiai E-DX2-880. This has a 2 stroke engine and a medium duty drive line. Frame is zinc plated for durability.
-
Adjustable cutting height, adjusted at the small front wheels from 40mm to 400mm high. If a higher cutting height is required, momentarily or to stop cutting plants, simply push down on the handle bars to lift the cutter bar. Longer legs can be supplied if higher cutting heights are required
-
Cutting width is 800mm (optional cutting width of 1200mm)
-
Wheel track of approx 1130mm. The HT-KumaP will straddle the crop and the operator can also walk in a wheel track. Hence no plant damage occurs allowing a second crop to grow
-
Adjustable handlebar height; allows for raised beds. The operator can walk directly behind the harvester or walk offset in a wheel track. The adjustment allows the harvester to be set to best advantage for the operator. Engine throttle is activated from the operators position
-
Conveyor belt is a heavy duty horticultural type which can easily be cleaned. It is engine driven but only drives when the engine is revved up
-
Frame is fully zinc plated for low maintenance
-
Wheels have quick release pins allowing compact storage or easy transporting in a vehicle
-
Cutting height (cutter bar above wheel ground level): 40mm to 400mm (optional high rise models available). With the In Feed Reel fitted length of cuttings can be up to 500mm.
-
Cutting width: 800mm standard (1200mm optional)
-
Wheel track: 1130mm (optional 1425mm)
-
Wheel drive: none (self-propelled option available)
-
Weight, dry: 51Kg
-
Collecting bin / bag: recrate 47 or 75 bins
-
Engine: Husqvarna Zenoah GZ26S (used to be Komatsu Zenoah) 22.5cc air cooled 2 stroke gasoline engine
-
Dimensions:
Width(mm) Length(mm) Height(mm) cu.m(approx.) Kg(approx.) Ready to use - KP800 model* 1390 2350 - 69 Ready to use - KP1200 model* 1780 2350 - - For freighting (on pallet) - KP800 model - - 1.83 120 For freighting (on pallet) - KP1200 model - - 2.6 150 * over wheels & control handle; crop lifters extend length to 2870m
Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.
The base price is for the HT - KumaP800 model with an 800mm cutting width.
| Options (all prices excl. GST, ex. factory): | Price | |
|---|---|---|
| Wider 1200mm cutting width HT - KumaP1200 model | NZ$8978.00 | |
| HT-KP800-BD drive line complete with 4 stroke engine | NZ$8075.00 | |
| HT-KP1200-BD drive line complete with 4 stroke engine | NZ$9255.00 | |
| HT-KP1600-BD drive line complete with 4 stroke engine | NZ$13140.00 | |
| 24v DC powered cutterbar HT - Kuma - 24VDC model | Please enquire | |
| 36v DC self propelled option (cutterbar still engine driven) HT - Kuma - SP model | add NZ$3500.00 | |
| Full 24V DC 800mm powered push along model (no engine) HT - Kuma - 24VDC | NZ $9130 | |
| Full 24V DC 1200mm powered push along model (no engine) HT - Kuma - 24VDC | NZ $10295 | |
| In feed reel | add NZ$770.00 | |
| Recrate collection bins in 45 or 75 sizes (download PDF of recrate sizes) | NZ$60.00 | |
| Optional bin holder | add NZ$255.00 | |
| Spare or empty bin holder | Please enquire | |
| Wind cover and side wind shields | Please enquire | |
| High speed model | Please enquire | |
| Finger Side Shifts | add NZ $230.00 | |
| High rise model Longer legs can be supplied allowing the HT - KumaP to cut up to 860mm above ground level with reel fitted. | add NZ$265.00 | |
| Holder for different bin sizes Bin Holders, Hook on | Please enquire |
Watch videos:
Parts lists are available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.
When placing a parts order, please quote the parts list drawing title, item number required and quantities.
You can download the following documents:
