HT -Table Top

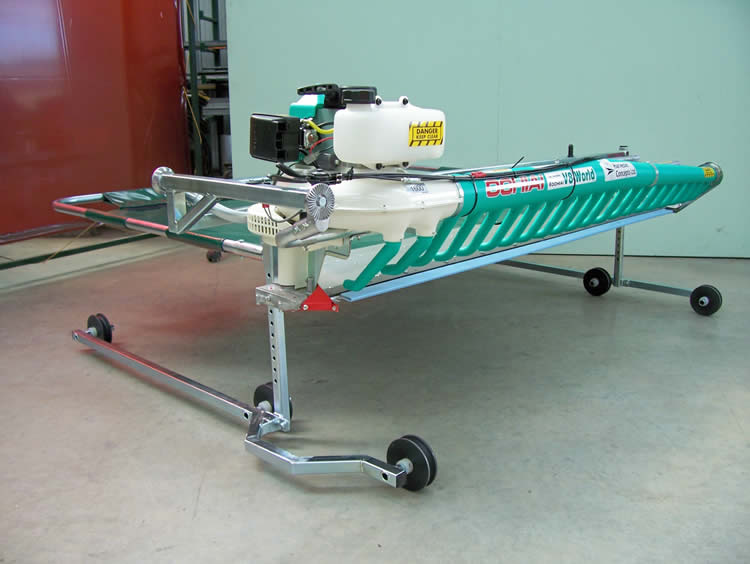

HT Table Top full view

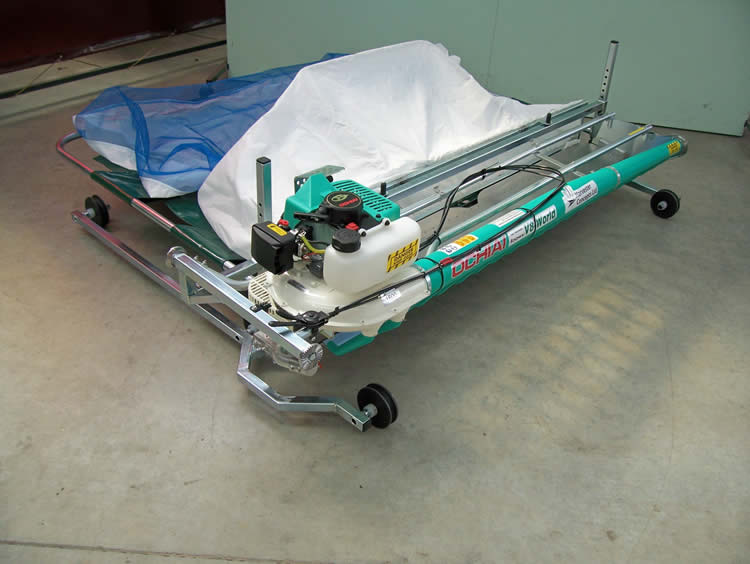

HT Table Top with bag

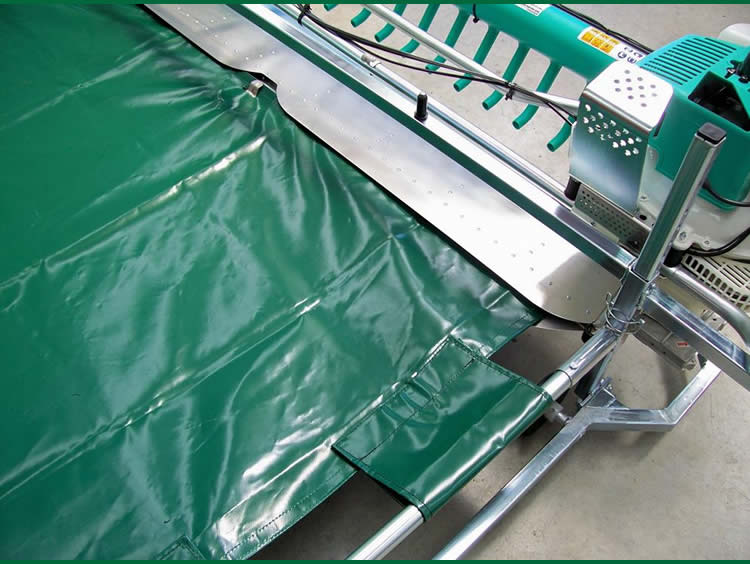

HT Table Top detail

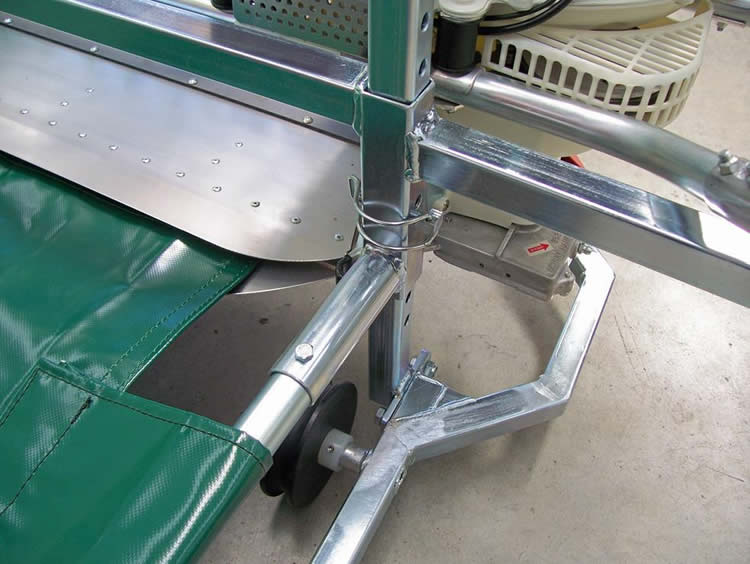

HT Table Top height adjustment

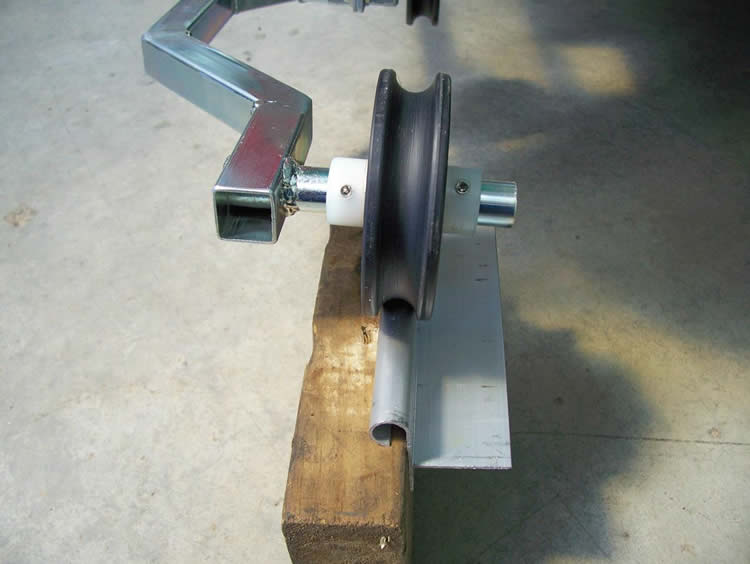

HT Table Top wheel adjustment

Base price: NZ$ 9745.00

(all prices excl. GST)

Availability:

ex. factory

Delivery:

NZ delivery typically within three weeks.

A typical application is hydroponic growing tables in tunnel houses. The HT-Table Top (TTH) runs on rails at the edge of each table. The crop is cut and blown into the collection bag. The HT-Table Top has adjustable cutting height from negative values to more than 400mm (customised to suit customer) so can also be used for topping crops.

Cutting widths of 1210 or 1600mm are available with frames made to suit your table width/rails. An extendable frame option is available.

Customer Comments: "We love our HT-TTH watercress harvester"

"our machine is still a little beautie – doing the job just perfectly. "

Light weight, can easily be carried and placed on table by two people.
Wheel track custom made to suit customer's tables.
Wheel design custom made to suit customer's tables.
Collection bag has quick release feature to speed up bag emptying.

Cutting height (above table side rails): 20mm up to 330mm in 12mm increments
Cutting width: 1210mm or 1600mm
Wheel track: to suit tables
Weight, dry: 34Kg

Dimensions:

	Width (mm)	Length (mm)	Height (mm)	cu.m (approx.)	Kg (approx.)
Ready to use	1850	1500	550	-	-
For freighting (in crate)	-	-	-	1.72	108

Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.

Parts lists are available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.

When placing a parts order, please quote the parts list drawing title, item number required and quantities.

You can download the following documents:

Handbook HT TTH (244 KB)
