HT-Salad

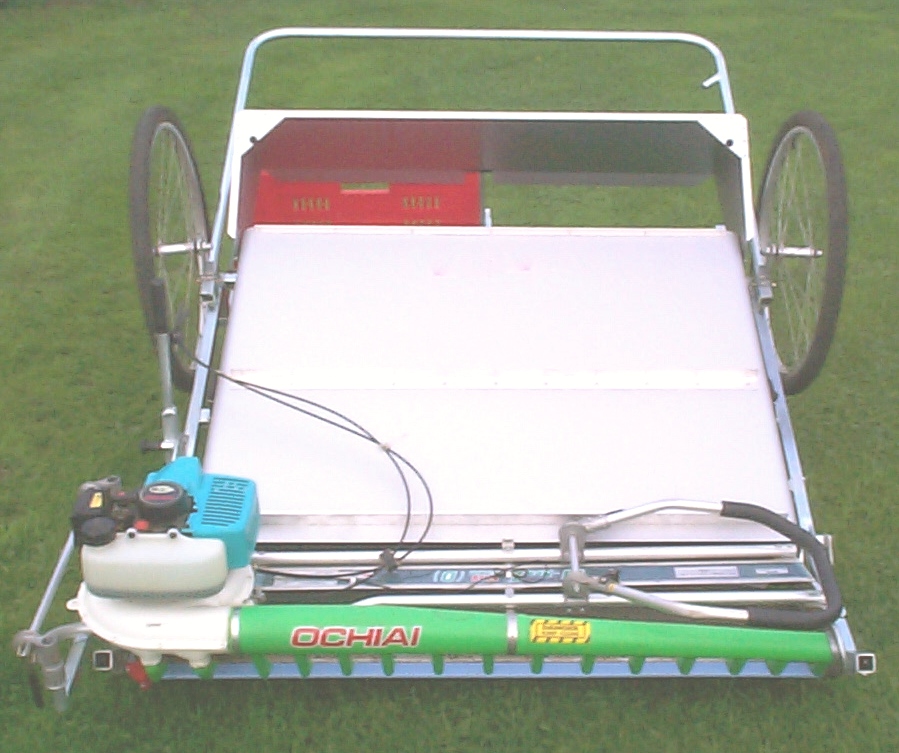

• Double reciprocating blades cut the crop cleanly

• Blows the cuttings directly into the bins minimizing handling and damage

• Adjustable cutting height from ground level up to 125 mm in nine steps, easy single lever adjustment

• Single Operator use, can even be used in muddy fields

• Easy bin changes, takes two standard recrate 75 vege bins

• Lightweight

• Stowage for travel wheels, with wheels only fitted when long distance travel is required

• Wheels have quick release feature for allowing compact storage or easy transporting in a vehicle

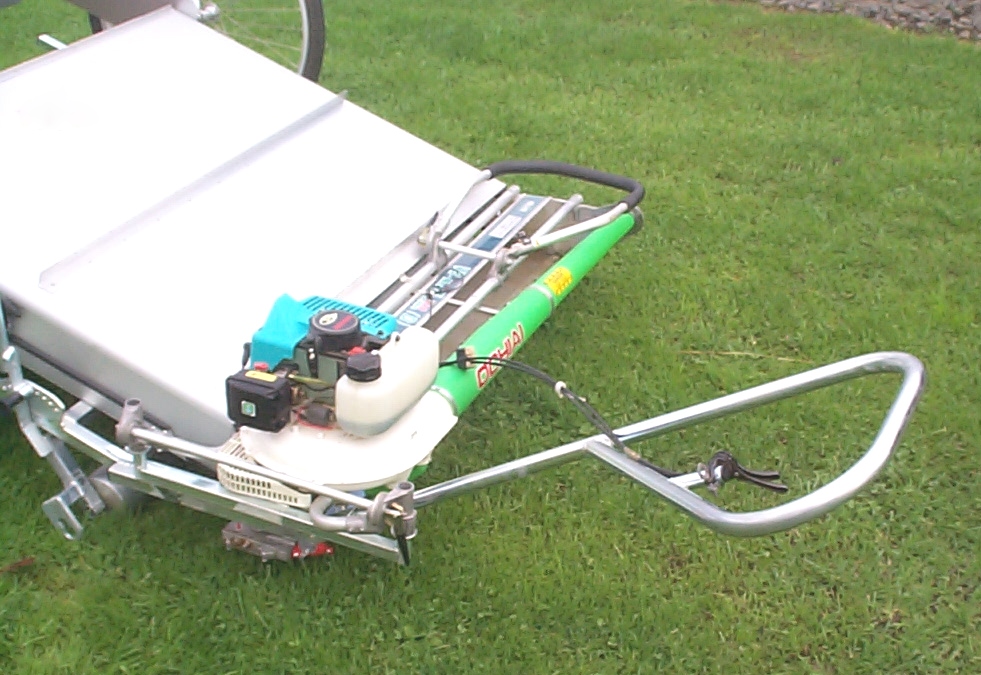

• Versatile handlebars can be mounted on the front or back of the harvester

• Easy clean design, with chute cover and deflector easily removed, plus construction and materials suitable for quick hose wash-down

• Frame is fully zinc plated for low maintenance

• Standard cutting width is approximately 1200 mm

• Cutting height (above ground): adjustable 0 mm to 125 mm in five steps

• Cutting width: 1200 mm

• Wheel track: approx.. 1400 mm

• Wheel drive: none

• Belt speed: n/a

• Weight, dry: 49 kg

• Collecting bin / bag: two recrate 75 bins

• Engine: Husqvarna Zenoah G23LH-EZ (used to be Komatsu Zenoah) 22.5cc air cooled 2-stroke gasoline engine

• Dimensions:

  	Width (mm)	Length (mm)	Height (mm)	cu.m (approx.)	kg (approx.)
  Ready to use	1500 max	2180	800	-	-
  For freighting (on pallet)	-	-	-	1.8	120

Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.

We can custom manufacture, so please ask us about your special requirements.

Watch videos:

You can download the following documents:

• Handbook HT Salad (255 KB)
