HT-Nursery

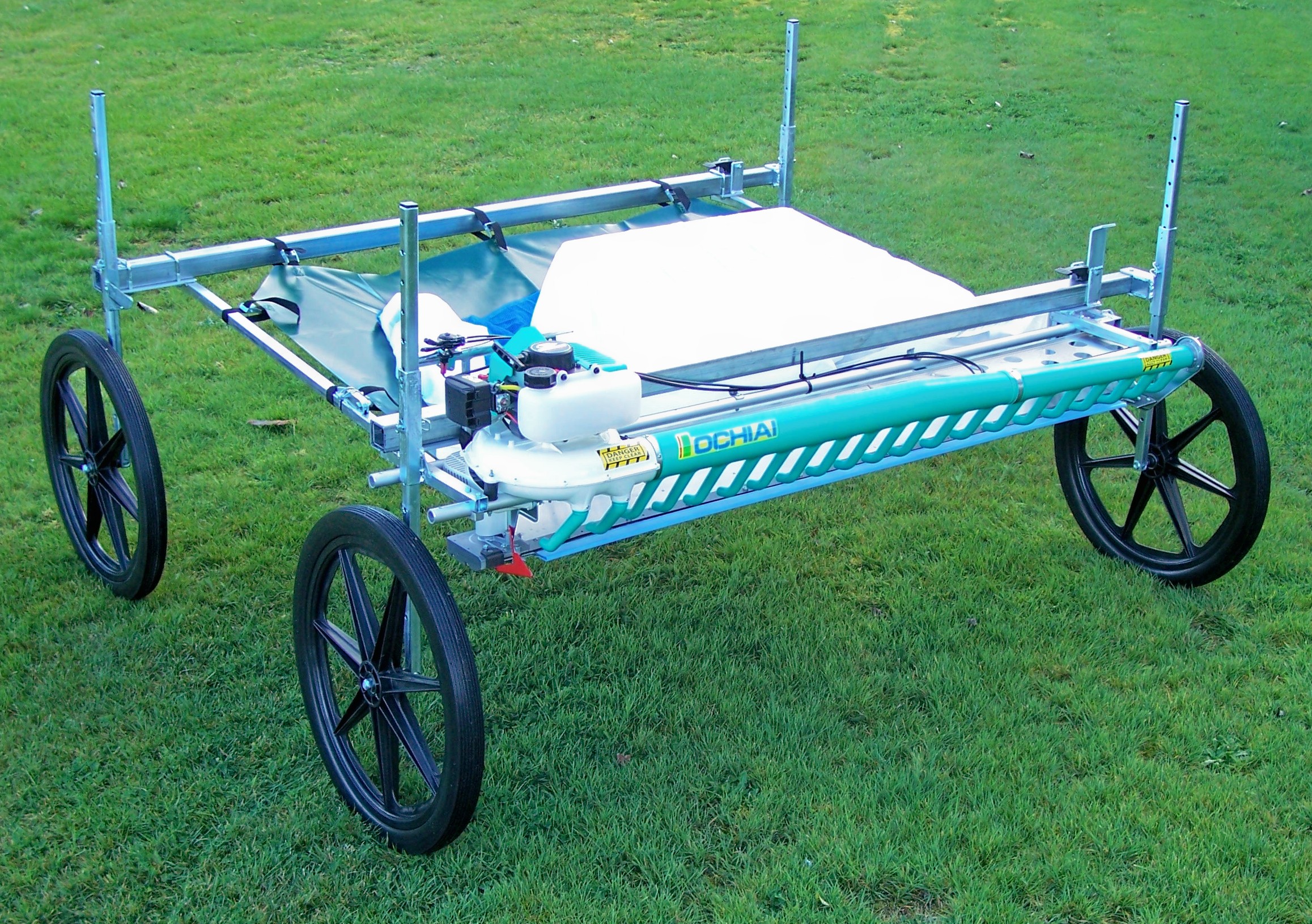

HT Nursery full view

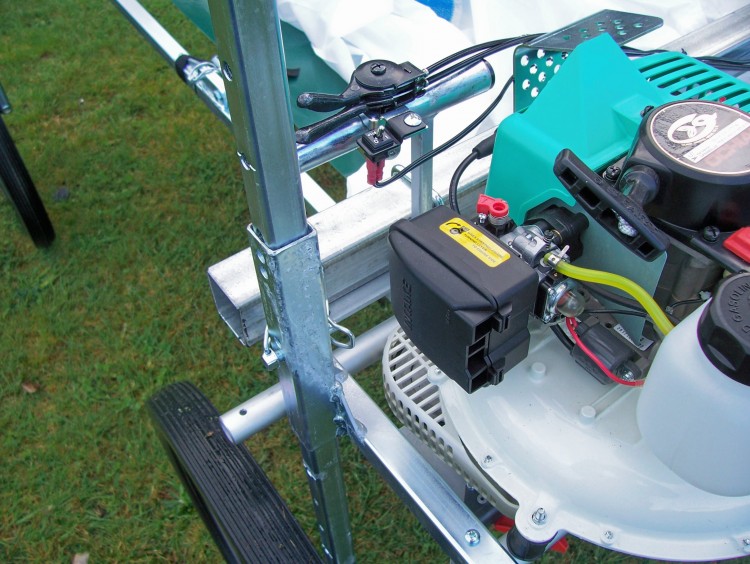

HT Nursery controls

HT Nursery height adjustment

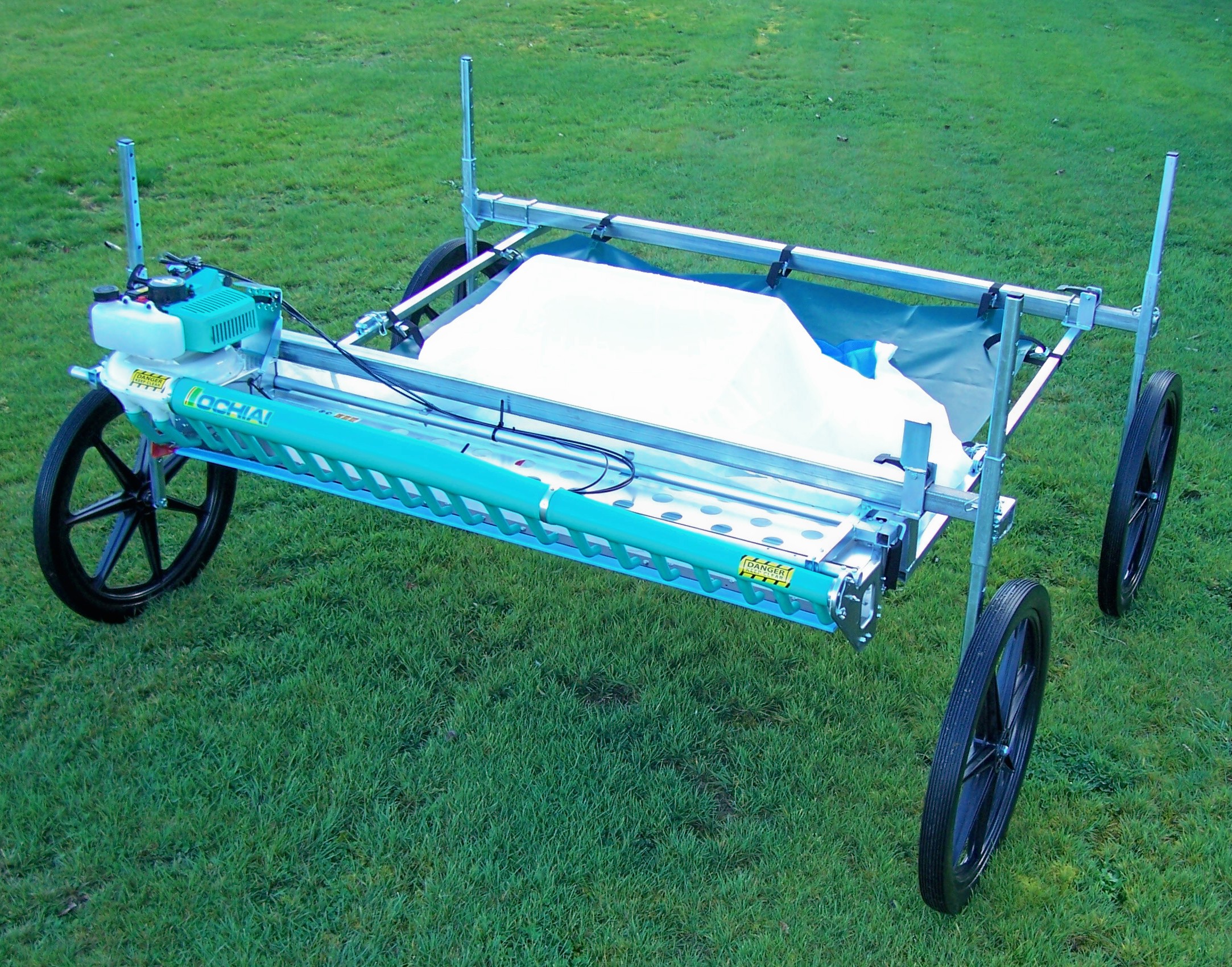

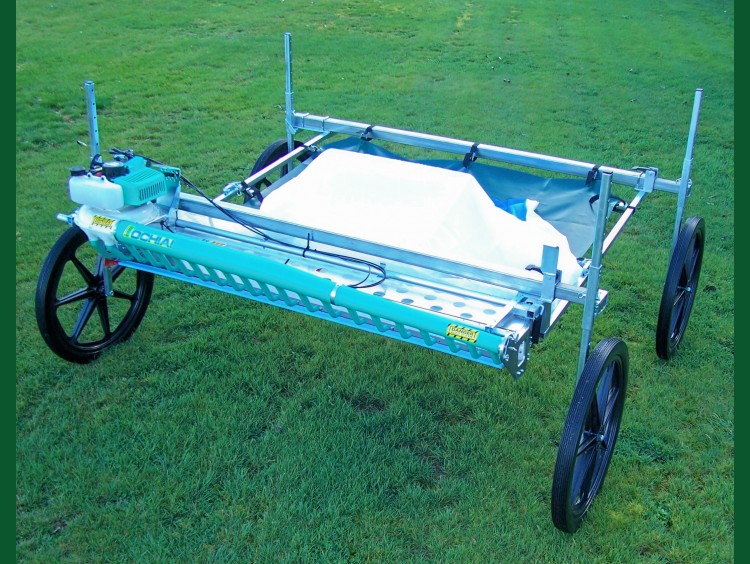

HT Nursery 1600 front

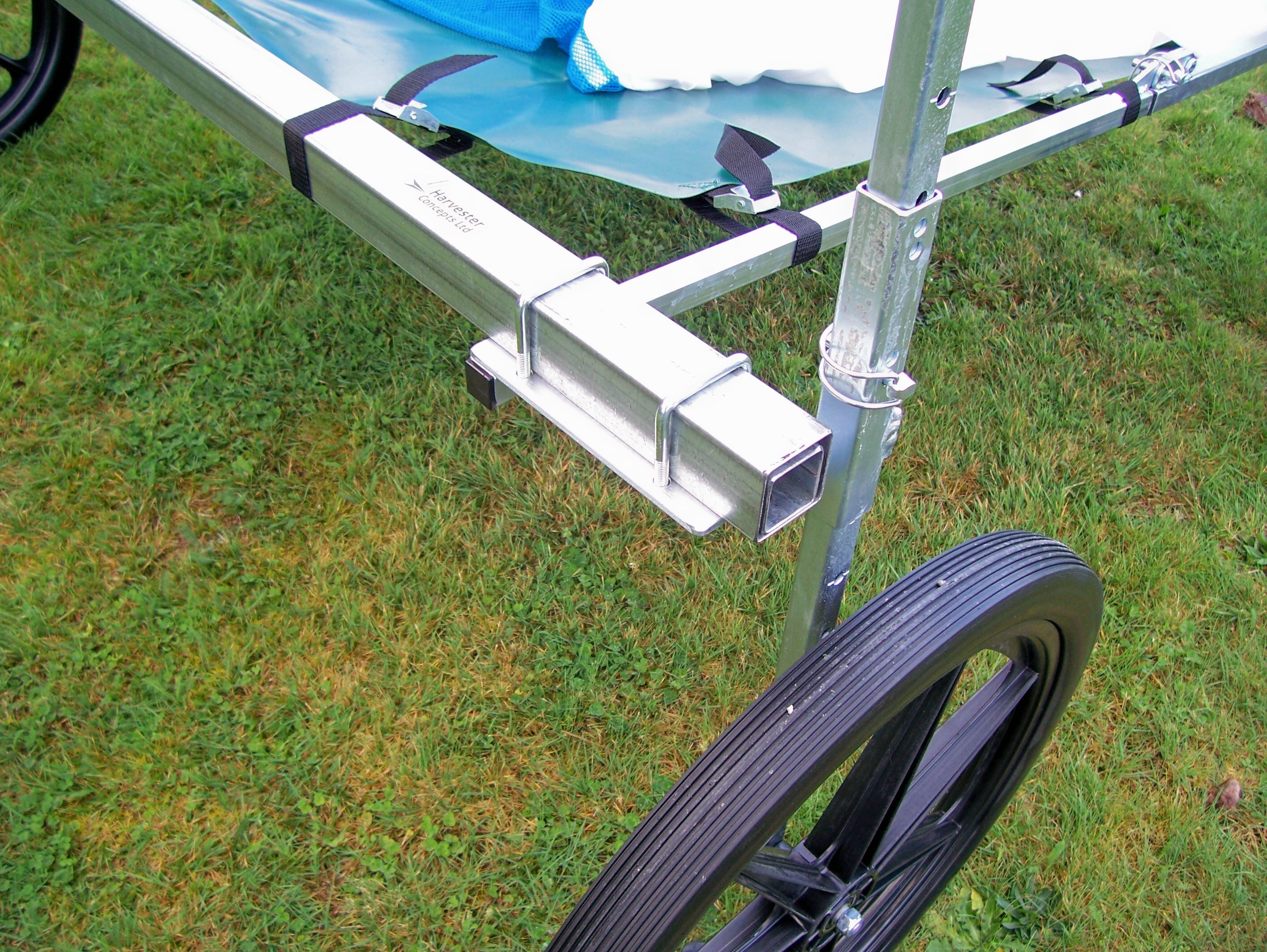

HT Nursery width adjustment

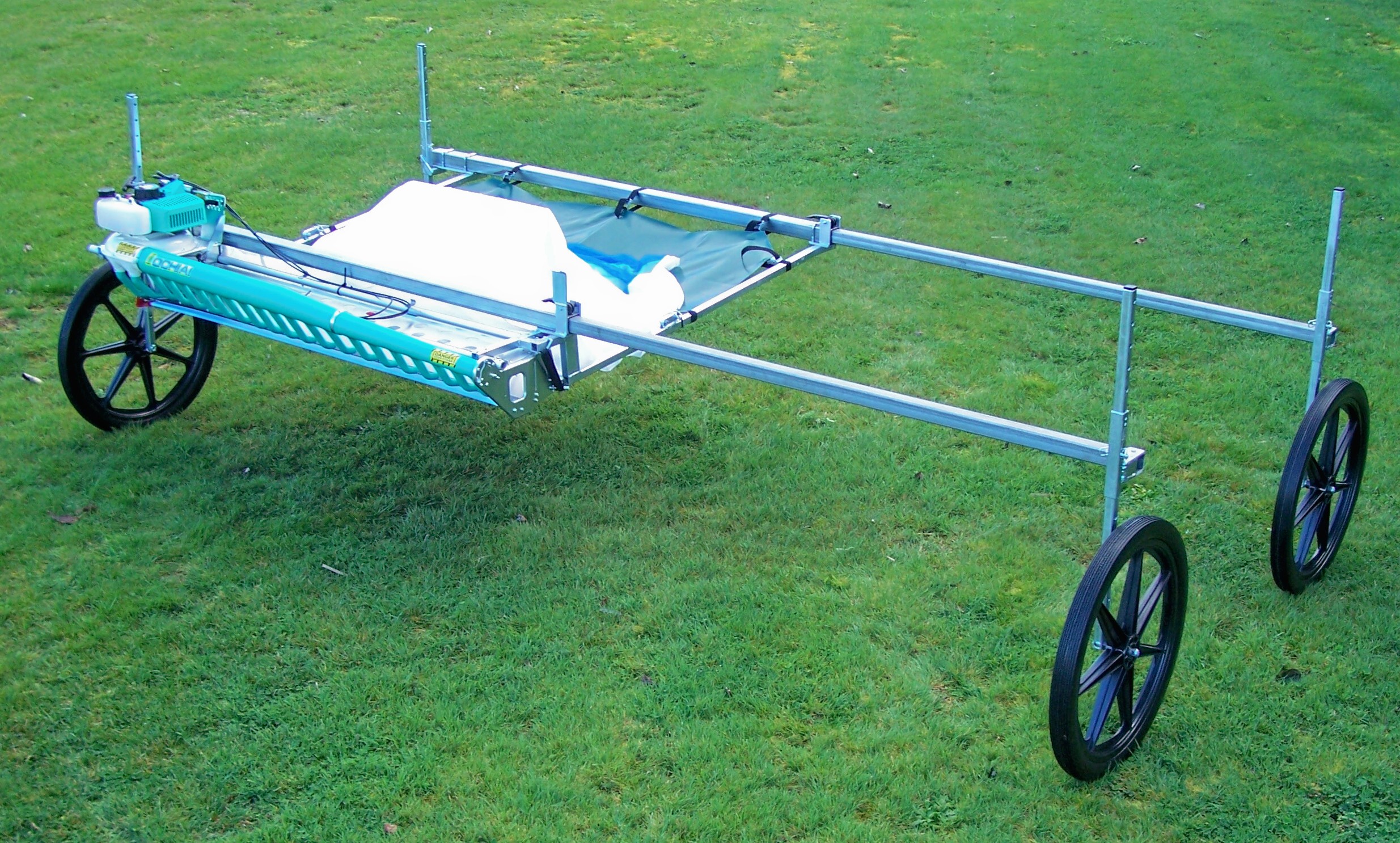

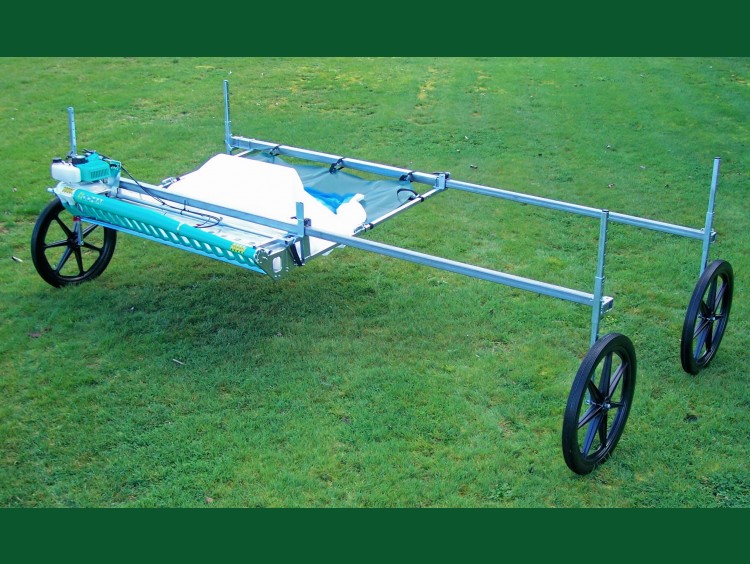

HT Nursery full width

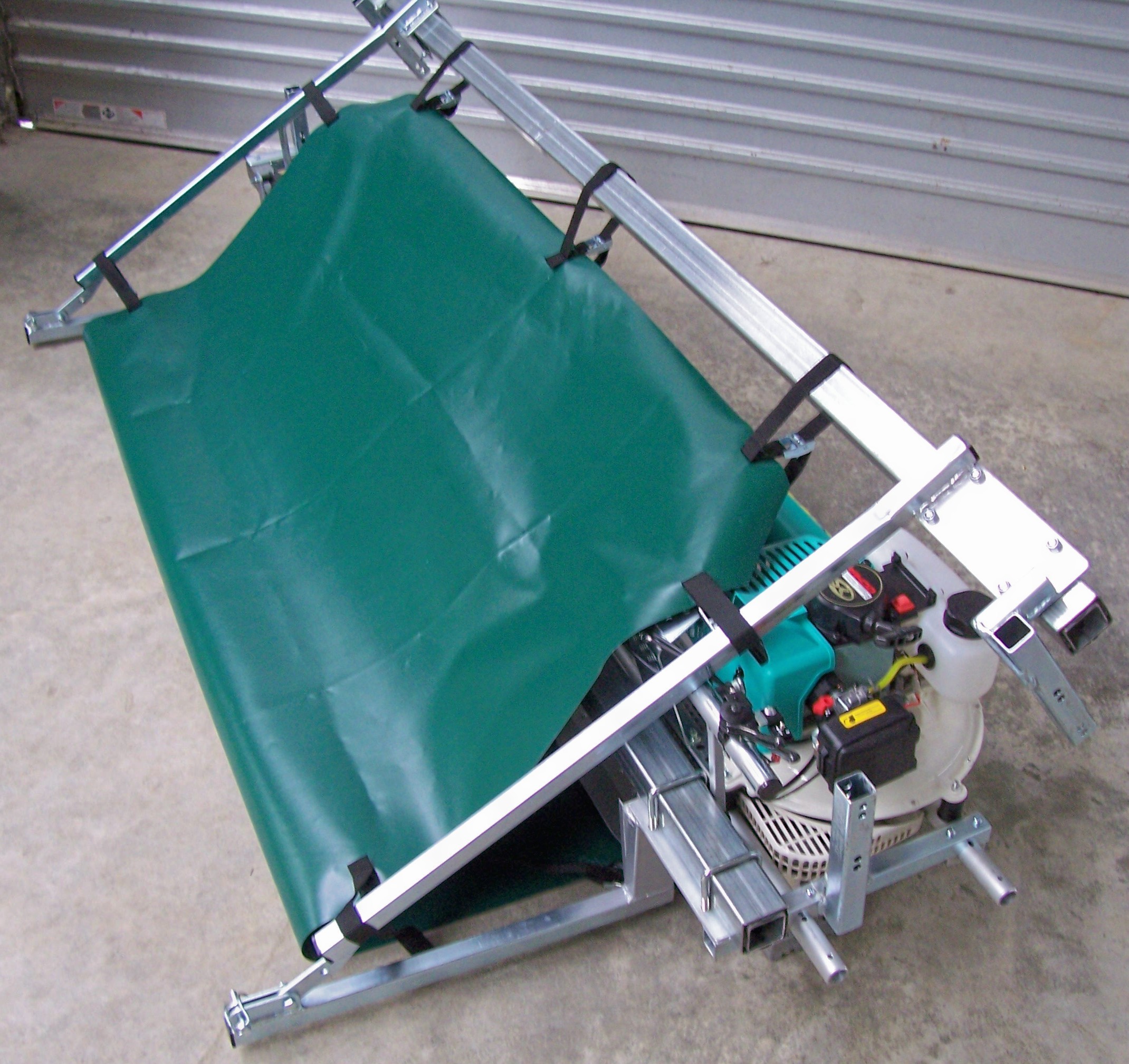

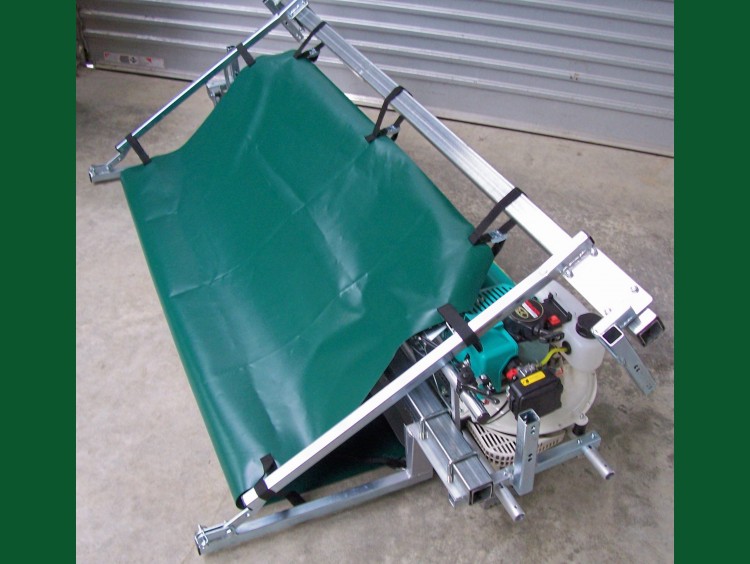

NU1600 Folded Up C

Base price: NZ$ 6852.00

(all prices excl. GST)

Availability:

ex. factory

Delivery:

NZ delivery typically within three weeks.

The HT-Nursery (HT-NU) was originally manufactured for use in plant nurseries for topping seedlings (i.e. pine). However, it has found many other uses and can harvest a wide range of crops such as Mints, Lemon Verbina, Basil, Lemon Thyme, Melissa, Sage, Oregano, Stinging Nettle, Rosemary, Passion Flower, Lemon Balm, Peppermint, Spearmint, Margoram, Savory, French Tarragon etc. It can also be used for taking cuttings for growing-on.

The power head is adjusted to the cutting height required. The operator pushes the harvester forward and the power head cuts and blows the cuttings into a collection bag. The bag has a quick release frame fitted to it so when full, the frame can easily be lifted off the harvester and emptied into a bin, trailer or other bulk storage.

Available in two models: the base model with a 1200mm cutting width and a wider 1600mm cutting width model (see the 'Options' tab for more detail).

Adjustable cutter height from 180 to 865mm above ground level (standard cutting from ground to higher is an option)
1200 or 1600mm cutting widths (see 'Options' tab for pricing)
Lightweight frame, zinc plated for durability
Easily used by one operator who can walk behind the harvester or offset in a wheel track
The HT-Nursery will straddle the crop and the operator can also walk in a wheel track
Hence no plant damage occurs allowing a second crop to grow
Wheels can easily be removed allowing compact storage or transporting in a vehicle. The frame folds in half forming a compact triangular shape

Cutting height (cutter bar above wheel ground level): 180mm to 865mm in 12.5mm increments (or as ordered)
Wheel drive: none
Engine: Husqvarna Zenoah G4K-D 41.5cc air cooled 2-stroke gasoline engine
Dimensions:

Specifications #1200 #1600 #1600 Extension
Length - - 1930mm
Width - - 2095mm
Wheel Track 1550mm 1940mm 2045mm
Height (over legs) - - 1150mm
Weight, dry 49kg 54kg 74kg

Specifications	#1200	#1600	#1600 Extension
Length	-	-	1930mm
Width	-	-	2095mm
Wheel Track	1550mm	1940mm	2045mm
Height (over legs)	-	-	1150mm
Weight, dry	49kg	54kg	74kg

Note: Specifications are subject to change without notice. Harvester Concepts implements a continuous product improvement program.

The base price is for the HT-NU 1200 model with a 1200mm cutting width.

Options (all prices excl. GST, ex. factory):		Price
Wider 1600mm cutting width HT-NU 1600 model		NZ$6852.00
Wider 1600mm cutting width HT-NU 1600 model Extending wheel track model		NZ$7539.45

Options (all prices excl. GST, ex. factory):

Price

Wider 1600mm cutting width HT-NU 1600 model

NZ$6852.00

Wider 1600mm cutting width HT-NU 1600 model

Extending wheel track model

NZ$7539.45

Parts lists are available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.

When placing a parts order, please quote the parts list drawing title, item number required and quantities.

You can download the following documents:

Handbook HT Nursery v2 (1.9 MB)
