Electric Cutter Bars

HT options 24v cutterbar

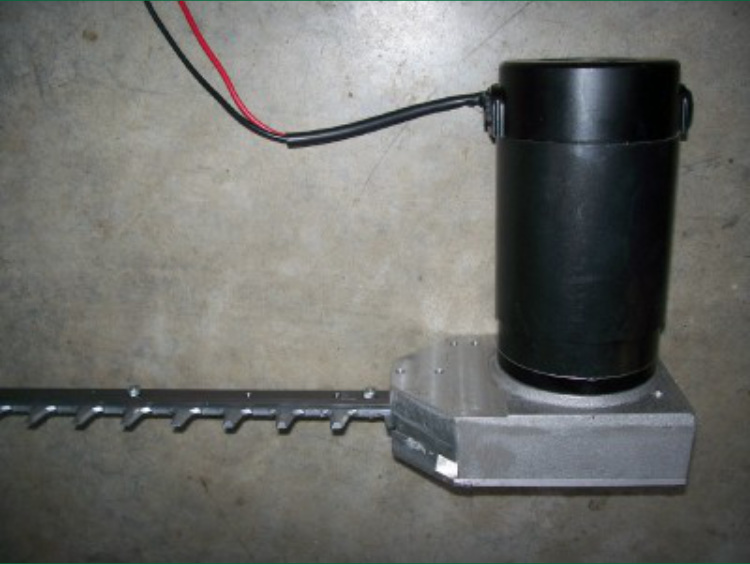

Electric Cutter Bar 24VDC front view

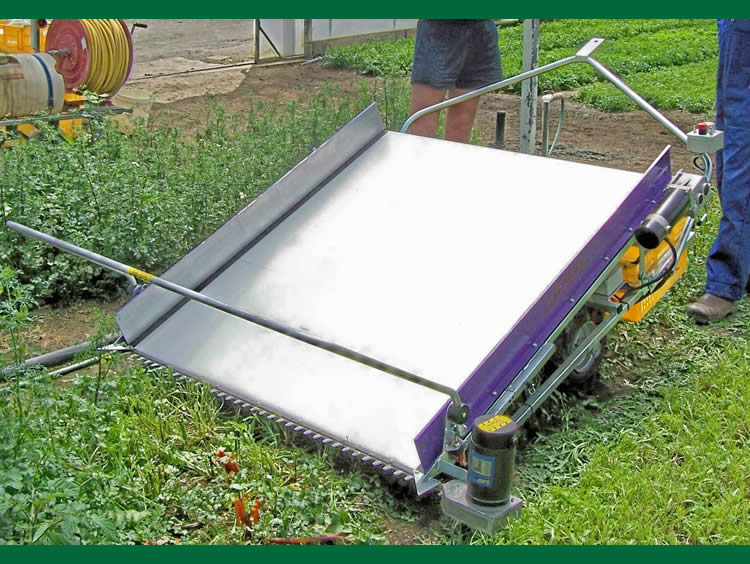

HT Shaver FB 24VDC self propelled

Base price: NZ$ 3328.00

(all prices excl. GST)

Availability:

ex. factory

Delivery:

NZ delivery typically within three weeks.

Electric cutter bars are ideal for where noise or fumes may be a problem or for intermittent operation. The electric cutter bars have found wide spread use in tunnel or glass houses.

The standard electric cutter bar uses a 24 Volt DC brushed motor and has a cutting length of 1200mm. The motor is continuously rated.

The electric cutter bar is available in a range of builds including various voltages, lengths, mounts and either supplied separately or incorporated into one of our harvesters.

Uses include harvesting organic grown crops, virtually every type of leafy salad crop and topping crops.

The standard specifications for the electric cutter bar are:

Cutter bar length: 1200mm, medium tooth size
Motor: 24 VDC brushed motor, continuously rated. 250W, 13 Amp
Weight (typical): 10.0 kg

Electric cutter bars can be custom built to suit the customer’s application. They are also available with the following options:

Various length cutter bars
Mounting brackets, with our without a break away (safety feature in case the cutter bar strikes a fixed object)
Various voltages
Where ground clearance is an issue we can supply the BD (Bottom Drive) gearbox fitted with the electric motor

Parts lists are available in PDF format. Please contact us by using the forms in the Contact centre and we'll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.

When placing a parts order, please quote the parts list drawing title, item number required and quantities.
